Component Location

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

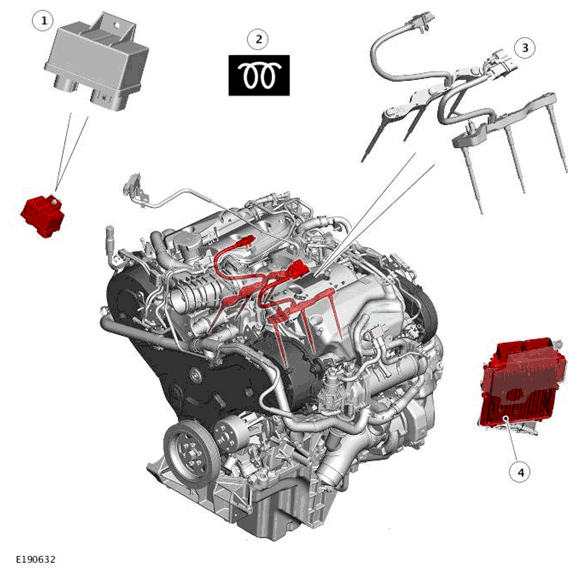

G11698318
ITEM DESCRIPTION
1 Glow plug control module
2 Glow plug warning indicator
3 Glow plugs (6 off)
4 Powertrain Control Module (PCM)
