Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure that a new component is installed.

Renew Part: Fuel rail balance pipe Quantity: 1 .
CAUTION: Only tighten the bolts finger-tight at this stage.
CAUTION: Make sure that a new component is installed.

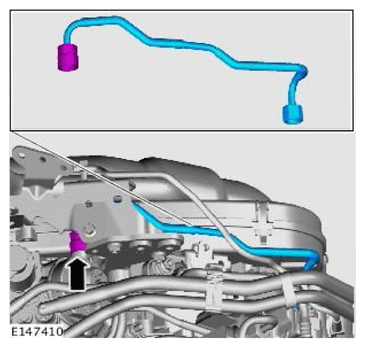

Renew Part: Fuel rail LH supply pipe Quantity: 1 .

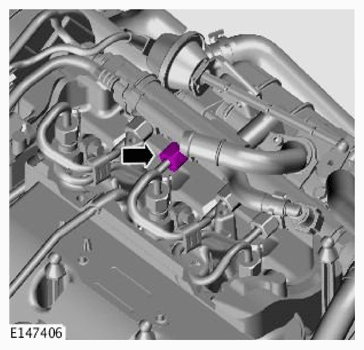

CAUTION: Tighten the retaining bolt finger tight.
CAUTION: Only tighten the bolts finger-tight at this stage.
CAUTION: Tighten the fuel supply line unions finger tight.
CAUTION: Tighten the fuel supply line unions finger tight.
CAUTION: Make sure that a new component is installed.

Renew Part: Fuel injector high pressure pipe(s) Quantity: 3 .

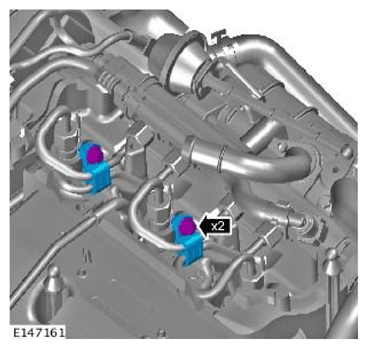

CAUTION: Tighten the fuel supply line clamp bolt finger tight.
Torque Specifications:

Fuel supply line unions to fuel rail 15 Nm

Fuel supply line unions to fuel injectors 15 Nm
Torque Specification: 15 Nm
Torque Specification: 15 Nm
Torque Specification: 15 Nm
Torque Specification: 15 Nm
Torque Specifications:

Fuel supply line unions to fuel rail 35 Nm

Fuel supply line unions to fuel injectors 35 Nm
Torque Specification: 35 Nm
Torque Specification: 35 Nm
Torque Specification: 35 Nm
Torque Specification: 10 Nm
Torque Specification: 10 Nm
Torque Specification: 10 Nm
Torque Specification: 10 Nm
NOTE: Make sure that the fuel injector return line has a maximum of 8 uses.
Torque Specification: 10 Nm
Torque Specification: 10 Nm
Refer to: LEFT EXHAUST GAS RECIRCULATION VALVE - TDV6 3.0L DIESEL - GEN 2
Refer to: LEFT EXHAUST GAS RECIRCULATION VALVE OUTLET TUBE
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Refer to: SECONDARY BULKHEAD CENTER PANEL - TDV6 3.0L DIESEL
Connect the startup battery ground cable.
