Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: EXHAUST SYSTEM - VEHICLES WITHOUT: DIESEL PARTICULATE FILTER (DPF)

    Refer to: EXHAUST SYSTEM - VEHICLES WITH: DIESEL PARTICULATE FILTER

  3. CAUTION: Make sure that the mating faces are clean and free of foreign material.

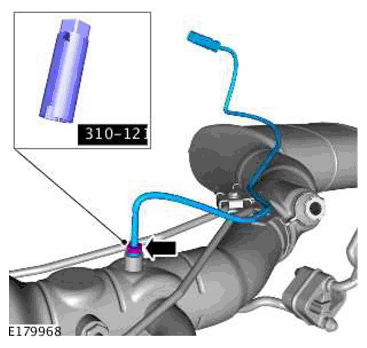

    G11772166

    Special Tool(s): 310-121

    Torque Specification: 35 Nm
