Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Refer to: LEFT TURBOCHARGER - TDV6 3.0L DIESEL - GEN 2, VEHICLES WITHOUT: HYBRID SYSTEM

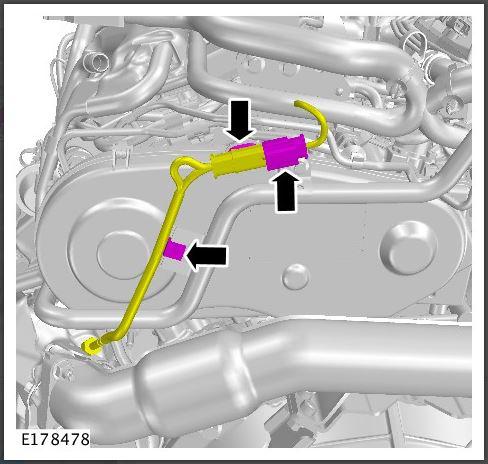

  3. G00570055

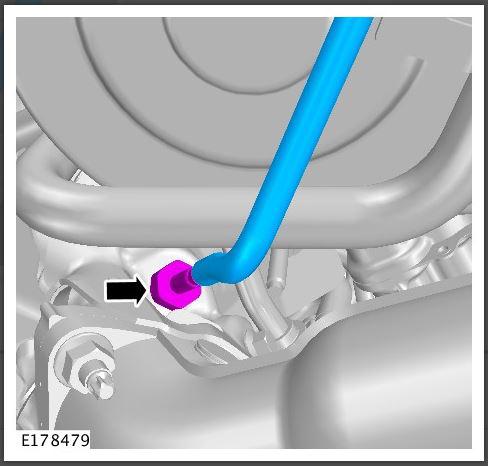

  4. G00570056

    Torque Specification: 28 Nm
