Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

- CAUTION: Make sure the anti-seize compound does not contact the HO2S tip.

  NOTE: If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.

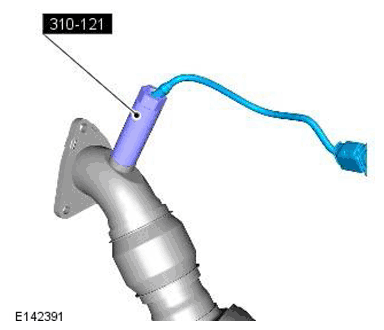

  Install the Heated Oxygen Sensor (HO2S).

  Remove the Special Tool(s): 310-121

  Torque Specification: 48 Nm
- Connect the electrical connector.
- Secure the wire harness.
CAUTION: Make sure that the mating faces are clean and free of foreign material.

NOTE: Install a new gasket.

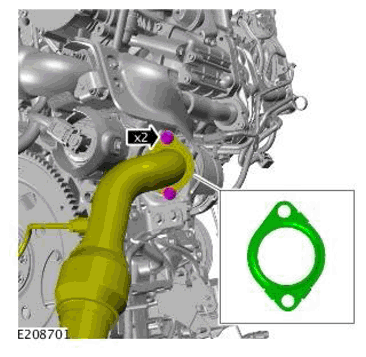

- Install the exhaust pipe.
  Renew Part: Exhaust pipe to turbocharger gasket Quantity: 1 .
- Install the 2 bolts.
CAUTION: Make sure that the mating faces are clean and free of foreign material.

NOTE: Only tighten the bolts finger-tight at this stage.

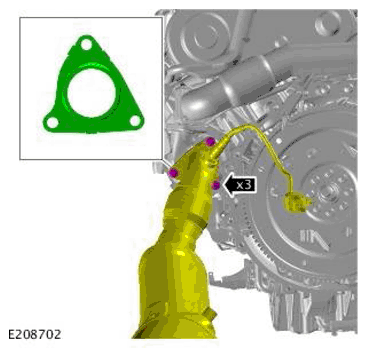

- Install the exhaust pipe.
  Renew Part: Exhaust downpipe RH to DPF gasket Quantity: 1 .
- Install the 3 bolts.
NOTE: Make sure the mating faces are clean and fully slotted together.
- Tighten the 5 exhaust down pipe bolts.
  Torque Specification: 28 Nm
NOTE: If equipped.

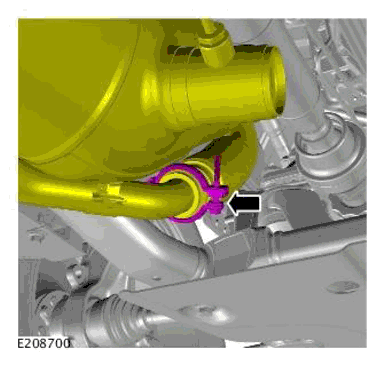

Install the Engine Gas Recirculation (EGR) pipe clamp.

Renew Part: Exhaust gas recirculation pipe gasket Quantity: 1 .

Torque Specification: 8 Nm
- Install the transmission undershield.
- Install and tighten 10 bolts.
  Torque Specifications:

  M10 60 Nm

  M6 10 Nm
