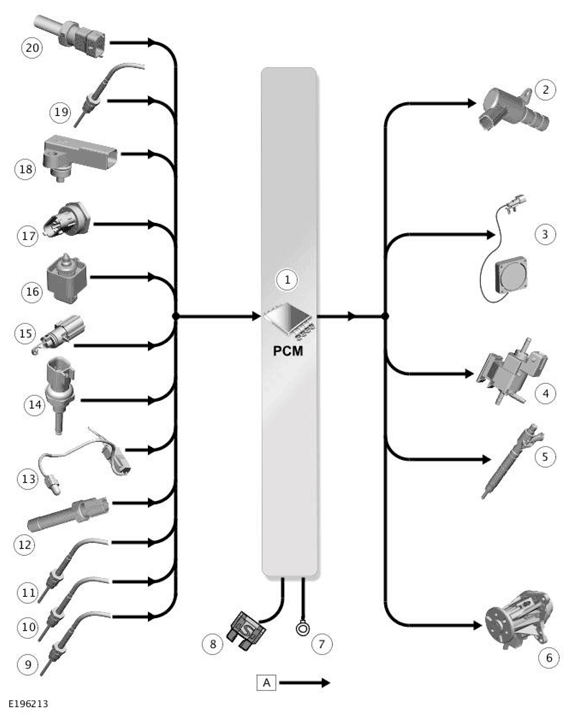

Control Diagram - 2 Of 5
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED.
| ITEM | DESCRIPTION |
|---|---|
| l | Powertrain Control Module (PCM) |
| 2 | Oil pump control solenoid |
| 3 | Powertrain Control Module (PCM) cooling fan - if equipped |
| 4 | Active engine mount solenoid |
| 5 | Fuel injector - 6 off |
| 6 | Variable coolant pump |
| 7 | Ground |
| 8 | Power supply |
| 9 | Pre catalyst exhaust gas temperature sensor - North American Specification (NAS) market vehicles only |
| 10 | Diesel Particulate Filter (DPF) inlet temperature sensor - All markets, except EU4 |
| 11 | Diesel Particulate Filter (DPF) outlet temperature sensor - All markets, except EU4 |
| 12 | Oil pressure switch |
| 13 | Ambient Air Temperature (AAT) sensor |
| 14 | Cylinder head temperature sensor |
| 15 | Charge air temperature sensor |
| 16 | Water In Fuel (WIF) sensor |
| 17 | Fuel Rail Pressure (FRP) sensor |
| 18 | Manifold Absolute Pressure (MAP) sensor |
| 19 | Exhaust gas temperature sensor |
| 20 | Fuel temperature sensor |
