Removal And Installation: Removal
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: ENGINE COVER - TDV6 3.0L DIESEL
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Remove the left-hand front wheel and tire.
- Refer to: ENGINE UNDERSHIELD
- NOTE: Remove and discard the gasket.

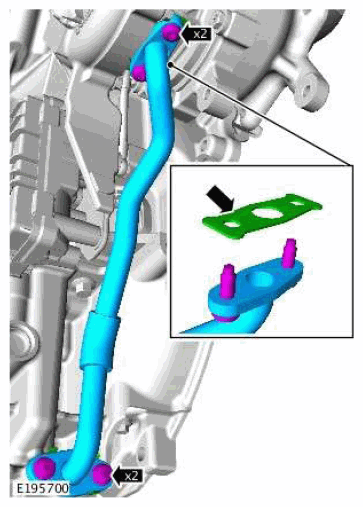

Renew Part: Turbocharger oil return pipe to turbocharger gasket Quantity: 1 .
Torque Specification: 10 Nm
-
NOTE: Make sure to clean the threads prior to installation.

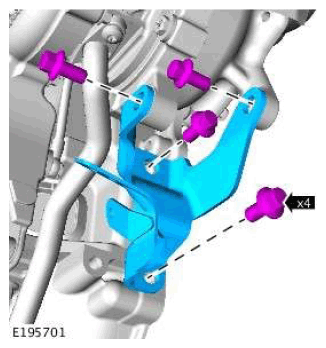

Torque Specification: 32 Nm

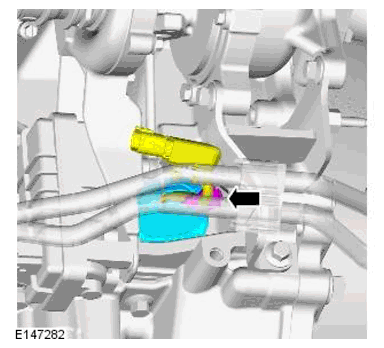

- CAUTION: Install the CKP sensor correctly into the housing. Failure to follow this instruction may result in damage to the CKP sensor.NOTE: Engine shown removed for clarity.

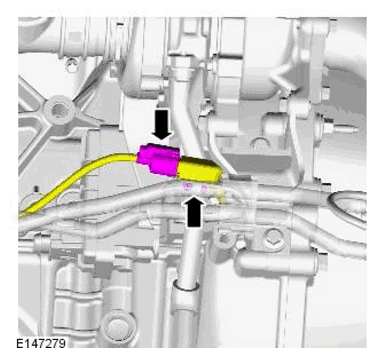

- Torque Specification: 5 Nm
-
CAUTION: Install the CKP sensor correctly into the housing. Failure to follow this instruction may result in damage to the CKP sensor.

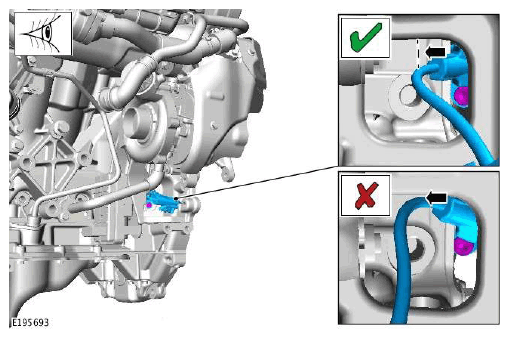

Using the illustration, check the installed position of the CKP sensor as seen through the cylinder block opening. The CKP sensor wiring must point towards the 9 o'clock position and not contact the cylinder block as shown. If the position is not correct repeat the process from step 9 of the removal procedure.
