Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2014 Land Rover Range Rover, and 2013 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS .

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .

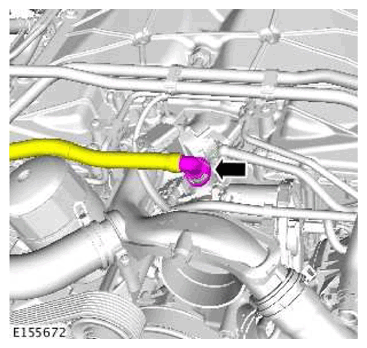

  4. G11770628

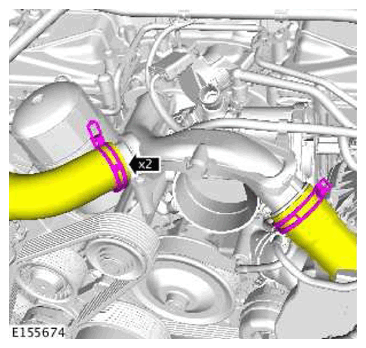

  5. G11770629
  6. NOTE: This step should only be carried out on vehicles pre 2015.

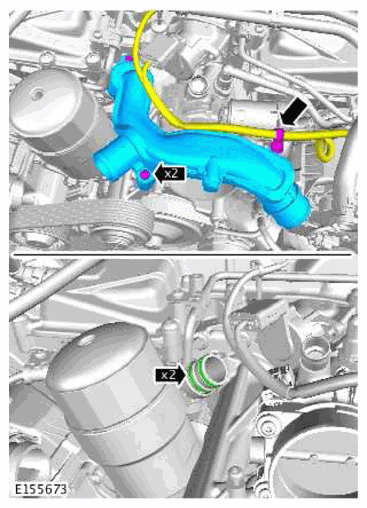

    G11770630

    Renew Part: Engine coolant outlet seal Quantity: 1  .

    Torque Specification: 10 Nm

  7. NOTE: This step should only be carried out on vehicles from 2015 onwards.

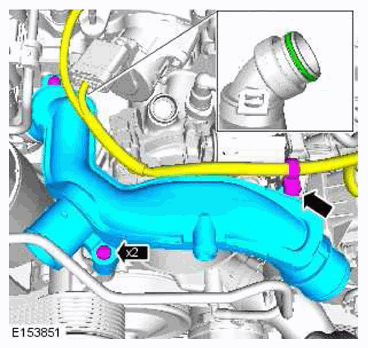

    G11770631

    Renew Part: Engine coolant outlet seal Quantity: 1  .

    Torque Specification: 10 Nm

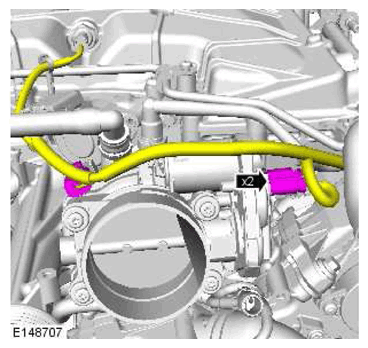

  8. G11770632

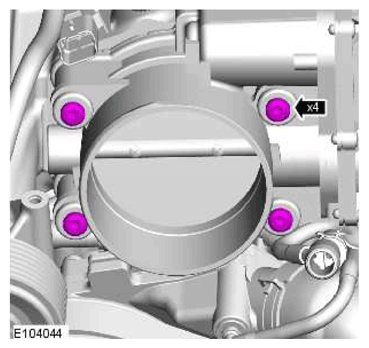

  9. G11770633

    Torque Specification: 10 Nm

  10. CAUTION: Do not attempt to clean the throttle body bore, build up of deposits reduces air leakage past the throttle plate at the fully closed position.

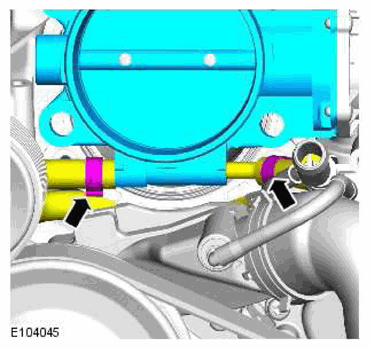

    G11770634
    • Remove and discard the gasket.
    • Install a new gasket.

      Renew Part: Throttle body gasket Quantity: 1  .

    • Clean the components mating faces.
