Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2014 Land Rover Range Rover, and 2013 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Always carry out the cleaning process before carrying out any repairs to the fuel injection system components. Failure to follow this instruction may result in foreign matter ingress to the fuel injection system.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .
  2. Refer to: HIGH-PRESSURE FUEL SYSTEM BLEEDING .
  3. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS .

  4. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  5. Refer to: ENGINE UNDERSHIELD .

  6. Refer to: FUEL INJECTION COMPONENT CLEANING .

  7. Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR .
  8. CAUTION: Be prepared to collect escaping coolant.

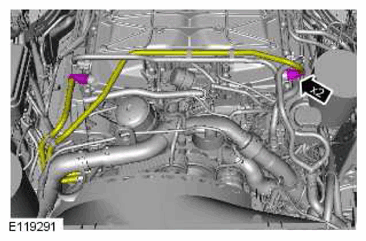

    G11770574
  9. WARNING: Be prepared to collect escaping fluids.

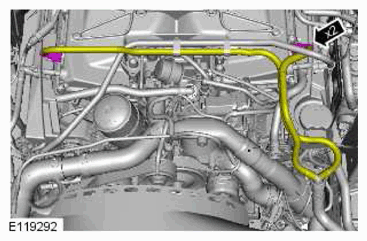

    G11770575
  10. CAUTION: Be prepared to collect escaping fluids.

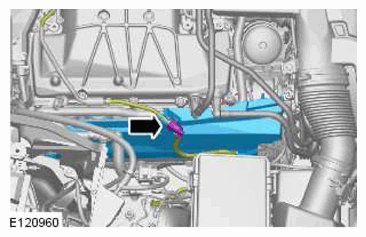

    G11770576
  11. CAUTION: Be prepared to collect escaping fluids.

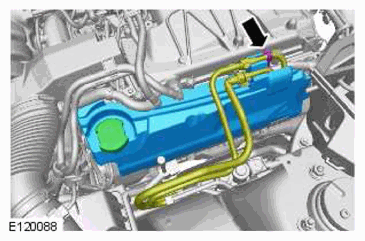

    G11770577
  12. CAUTION: Be prepared to collect escaping fluids.

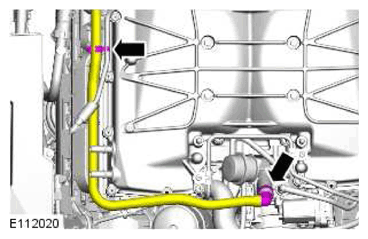

    G11770578
  13. CAUTION: Be prepared to collect escaping fluids.

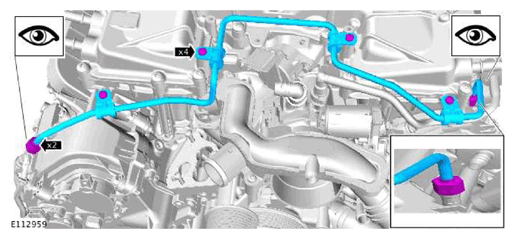

    G11770579

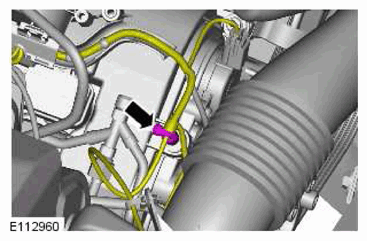

  14. G11770580
  15. CAUTION: Be prepared to collect escaping fluids.

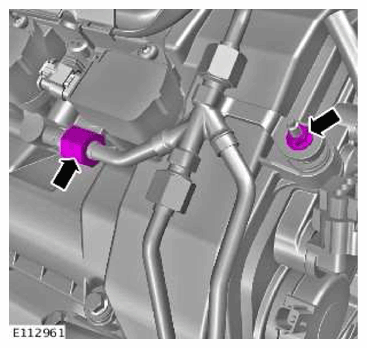

    G11770581
  16. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  17. Refer to: GENERATOR - V8 S/C 5.0L PETROL .

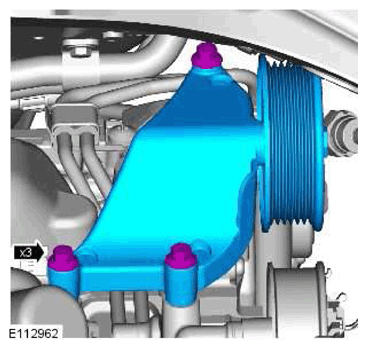

  18. G11770582
  19. NOTE: Engine shown removed for clarity.

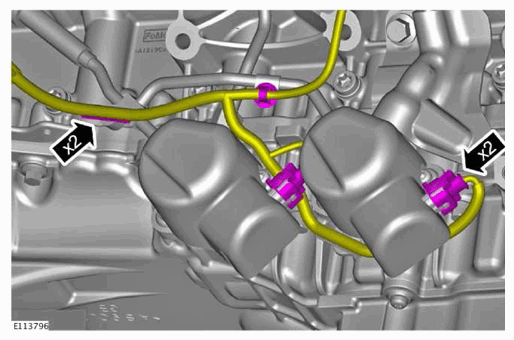

    G11770583
  20. CAUTION: Be prepared to collect escaping fluids.
    NOTE: Engine shown removed for clarity.

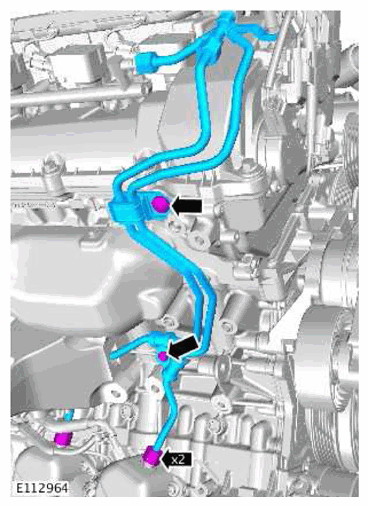

    G11770584
  21. CAUTION: Be prepared to collect escaping fluids.

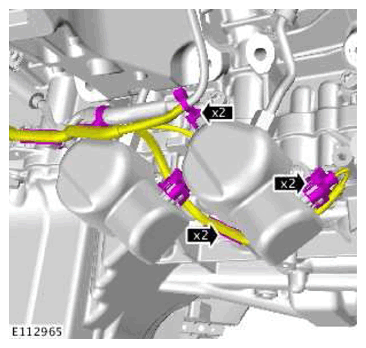

    G11770585

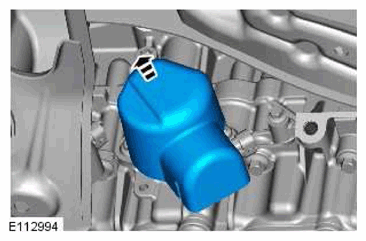

  22. G11770586
  23. CAUTION: Be prepared to collect escaping fluids.

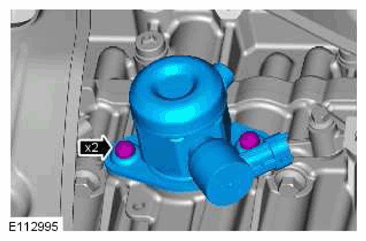

    G11770587

    Loosen the Torx screws a turn each at a time.

  24. CAUTION: Be prepared to collect escaping fluids.

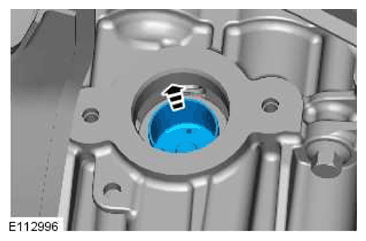

    G11770588
