Removal And Installation: Removal
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2014 Land Rover Range Rover, and 2013 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always carry out the cleaning process before carrying out any repairs to the fuel injection system components. Failure to follow this instruction may result in foreign matter ingress to the fuel injection system.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
.
All vehicles
- Refer to: HIGH-PRESSURE FUEL SYSTEM BLEEDING .
- Disconnect the battery ground cable.
Refer to: SPECIFICATIONS .
-
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
- Refer to: ENGINE UNDERSHIELD .
- Refer to: FUEL INJECTION COMPONENT CLEANING .
- Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR .
-

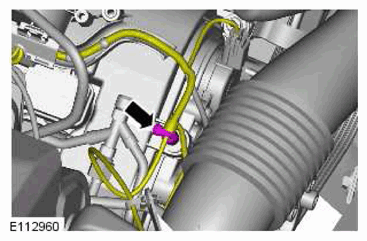

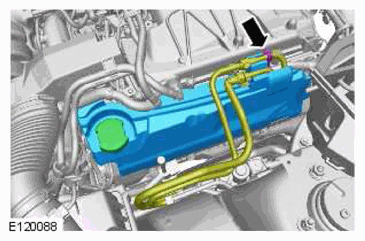

CAUTION: Be prepared to collect escaping coolant.
-
WARNING: Be prepared to collect escaping fluids.
-
CAUTION: Be prepared to collect escaping fluids.
-
CAUTION: Be prepared to collect escaping fluids.
-

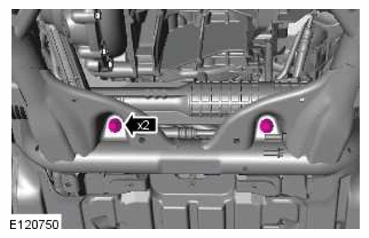

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
- Refer to: GENERATOR - V8 S/C 5.0L PETROL
.

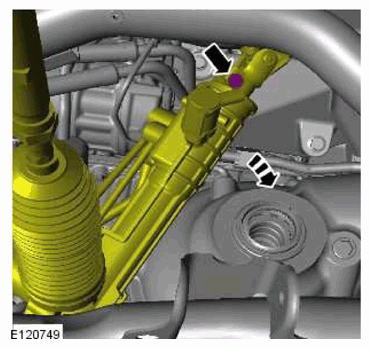

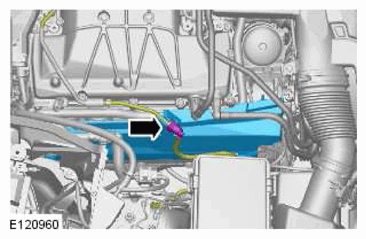

Left-hand drive vehicles

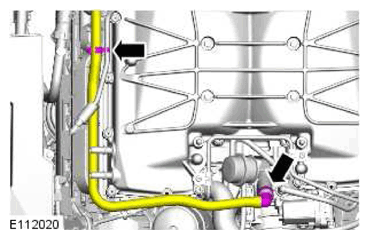

All vehicles
-

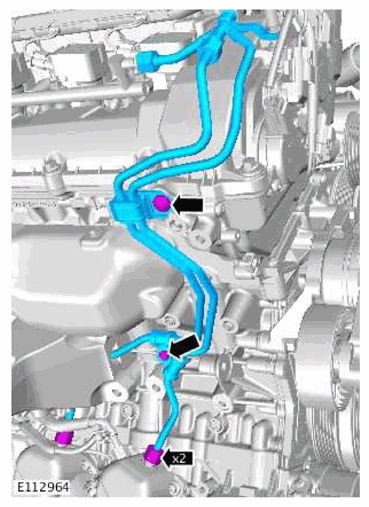

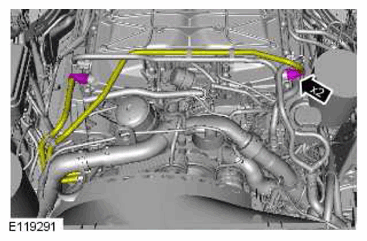

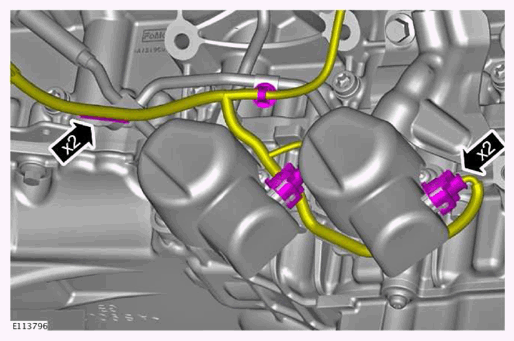

NOTE: Engine shown removed for clarity.
-

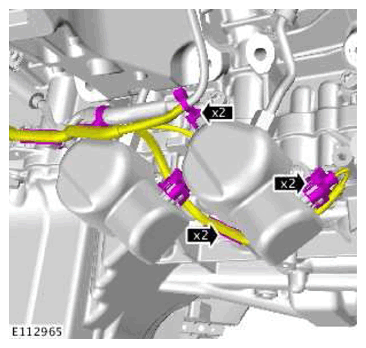

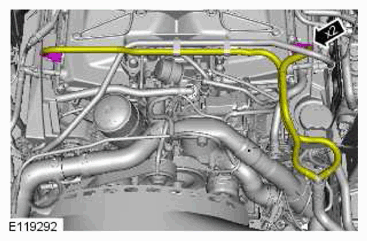

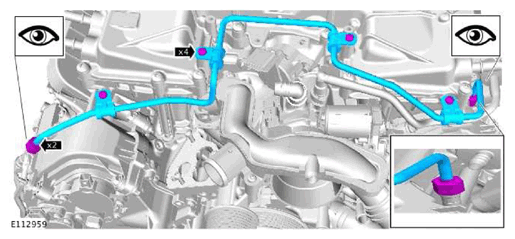

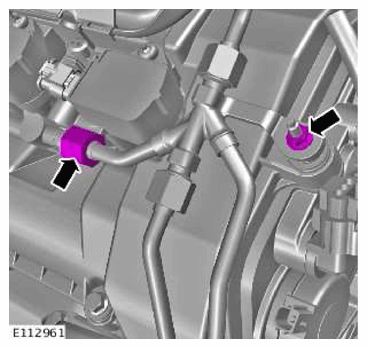

CAUTION: Be prepared to collect escaping fluids.NOTE: Engine shown removed for clarity.
-

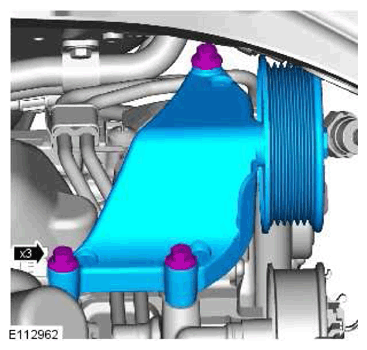

CAUTION: Be prepared to collect escaping fluids.
-
CAUTION: Be prepared to collect escaping fluids.

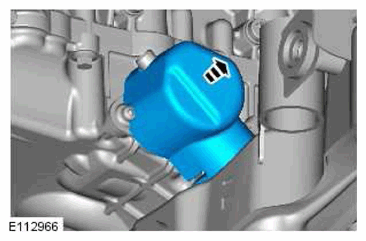

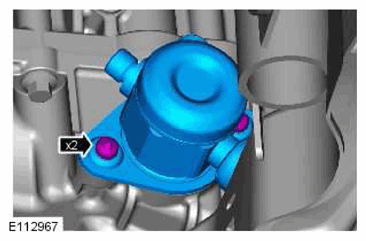

Loosen the Torx screws a turn each at a time.
-

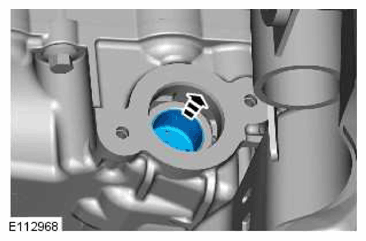

CAUTION: Be prepared to collect escaping fluids.
