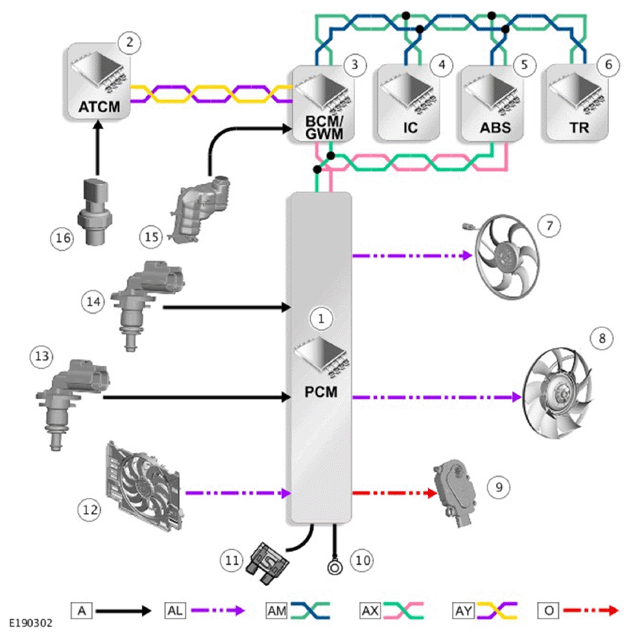

Control Diagram
A = HARDWIRED; AL = PULSE WIDTH MODULATION (PWM); AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS; AX = FLEXRAY BUS; AY = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWER MODE ZERO BUS; O = LOCAL INTERCONNECT NETWORK LIN) BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Automatic Temperature Control Module (ATCM) |
| 3 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 4 | Instrument Cluster (IC) |
| 5 | Anti-lock Brake System (ABS) Control Module |
| 6 | Terrain Response (TR) switchpack |
| 7 | Electric cooling fan - If equipped |
| 8 | Viscous Cooling Fan Control Module (VCFCM) |
| 9 | Active grille air shutter motor - If equipped |
| 10 | Ground |
| 11 | Power supply |
| 12 | Viscous cooling fan speed signal |
| 13 | Engine Coolant Temperature (ECT) sensor 1 |
