Removal And Installation: Removal
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
- Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
- Refer to: COOLING FAN .

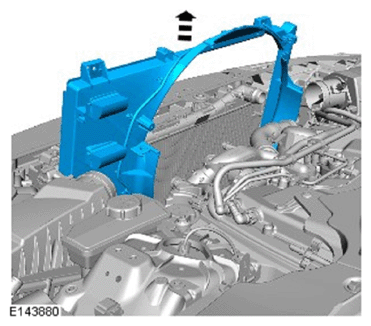

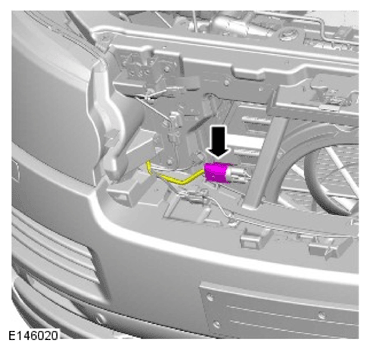

- Refer to: FRONT BUMPER COVER .
-

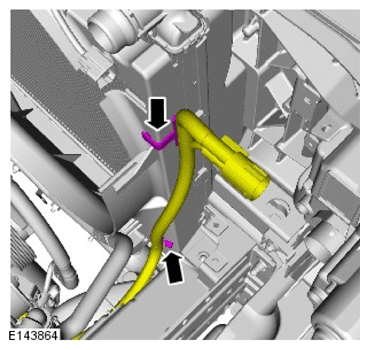

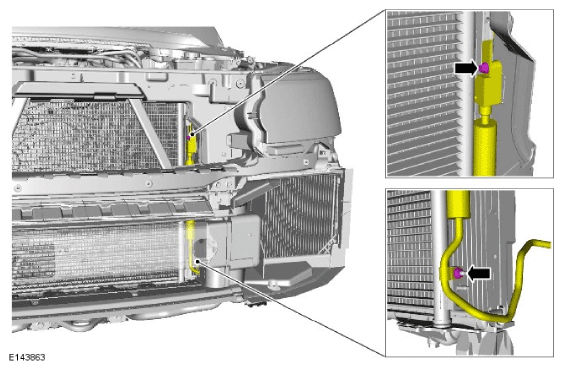

NOTE: If equipped.
-

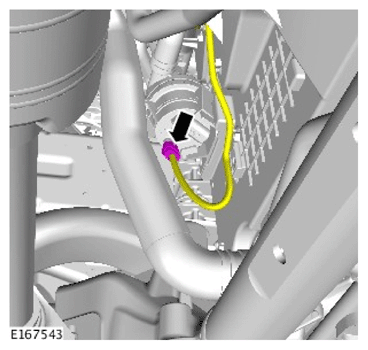

NOTE: If equipped.

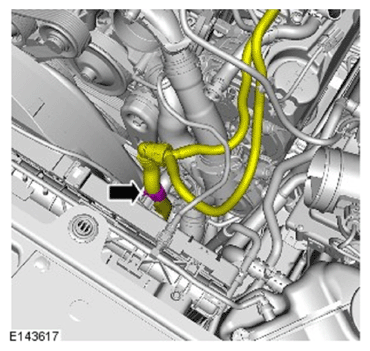

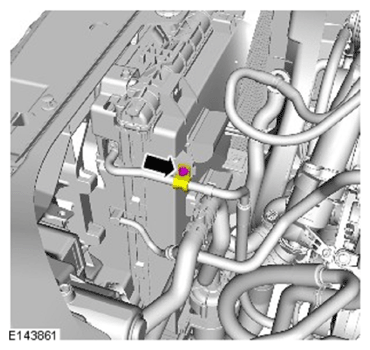

Torque Specification: 7 Nm

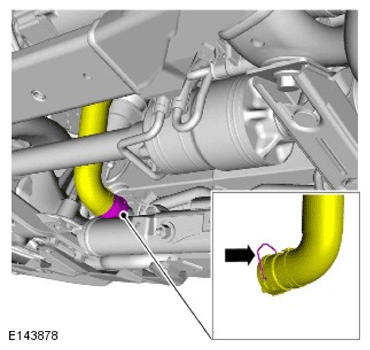

Torque Specification: 2.8 Nm
-

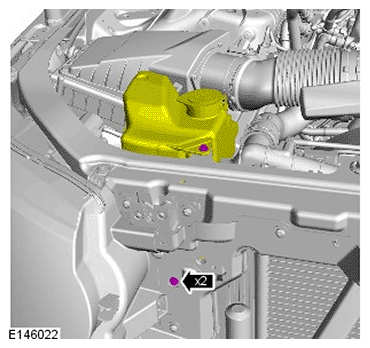

NOTE: Keep the expansion tank vertical.
Raise the coolant expansion tank minimum 110mm from its original position.

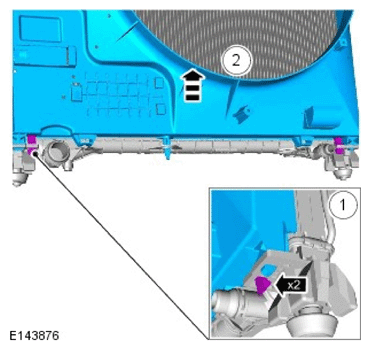

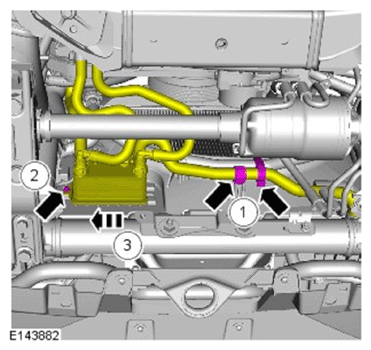

Torque Specification: 7 Nm

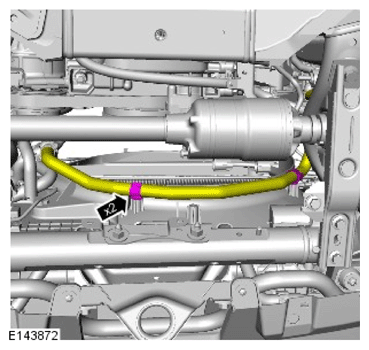

Torque Specification: 7 Nm

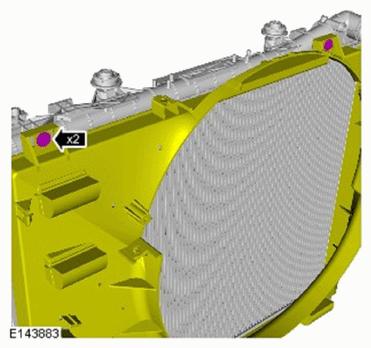

Torque Specification: 7 Nm

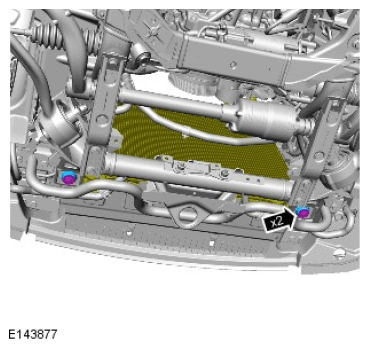

Torque Specification: 7 Nm
-
CAUTION: Always protect the cooling pack elements to prevent accidental damage.
- CAUTION: Make sure that all openings are sealed. Use new blanking caps.
Renew Part: Air conditioning pipes to condenser O-ring seals Quantity: 1 .
Torque Specification: 8 Nm
- CAUTION: Remove and discard the O-ring seals.
Renew Part: Air conditioning pipes to condenser O-ring seals Quantity: 1 .
Torque Specification: 8 Nm
-

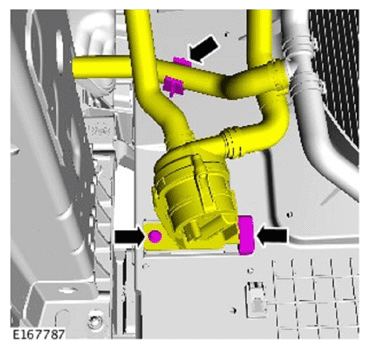

NOTE: If equipped.
Torque Specification: 7 Nm
Torque Specification: 15 Nm
-
CAUTION: Always protect the cooling pack elements to prevent accidental damage.
-
CAUTION: Always protect the cooling pack elements to prevent accidental damage.
-
NOTE: If equipped.
Torque Specification: 7 Nm
Torque Specification: 4.5 Nm
