Removal And Installation: Removal
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
- Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
- Refer to: COOLING FAN .
- Remove the left front wheel arch liner.
Refer to: FENDER SPLASH SHIELD .
-
NOTE: The following step is required if a front mounted cooling fan is installed to the vehicle.
-
NOTE: If equipped.
-
NOTE: If equipped.
Torque Specification: 7 Nm
Torque Specification: 2.8 Nm
-
NOTE: Keep the coolant expansion tank vertically.
Raise the coolant expansion tank minimum 110mm from its original position.
Torque Specification: 7 Nm
Torque Specification: 7 Nm
Torque Specification: 7 Nm
-

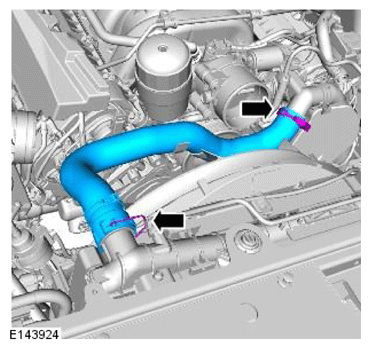

CAUTION: Always protect the cooling pack elements to prevent accidental damage.
- CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

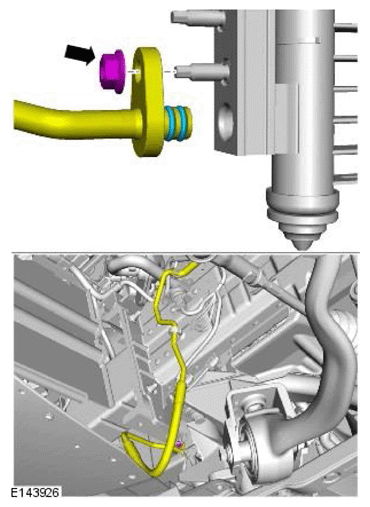

Renew Part: Air conditioning pipes to condenser O-ring seals Quantity: 1 .
Torque Specification: 8 Nm
-
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Torque Specification: 8 Nm
Torque Specification: 15 Nm
-

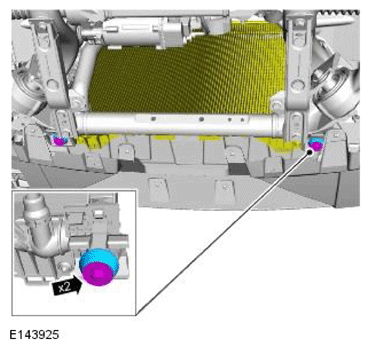

CAUTION: Always protect the cooling pack elements to prevent accidental damage.
-
CAUTION: Always protect the cooling pack elements to prevent accidental damage.
-
NOTE: If equipped.
Torque Specification: 7 Nm
Torque Specification: 4.5 Nm
