Removal And Installation: Installation

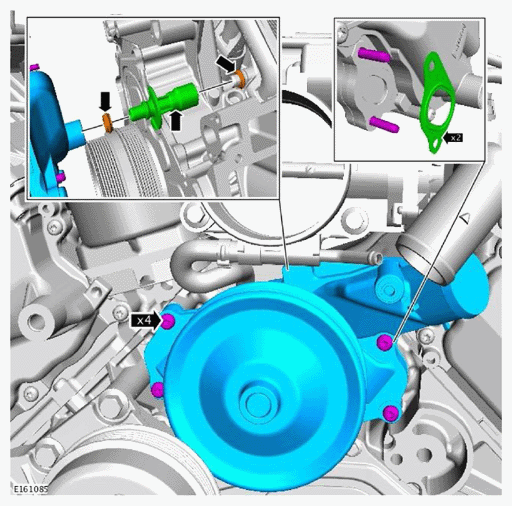

  1. CAUTION: Install new O-ring seals.
    NOTE: Install new gaskets.
    G11762665

    Torque Specification: 12 Nm

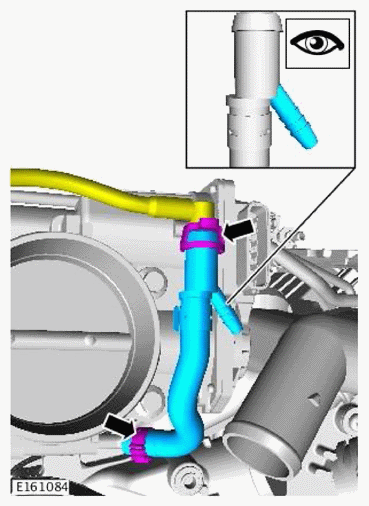

  2. NOTE: If the component removed from the vehicle is not as what is detailed in the illustration, make sure the new version of the component is installed (refer to the parts catalogue).
    G11762667

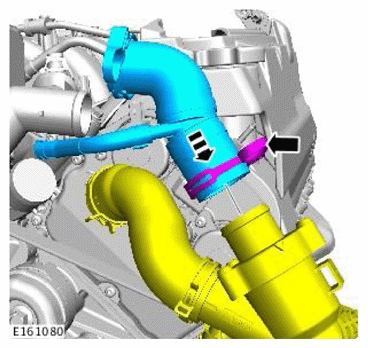

  3. NOTE: If the component removed from the vehicle is not as what is detailed in the illustration, make sure the new version of the component is installed (refer to the parts catalogue).
    G11762668

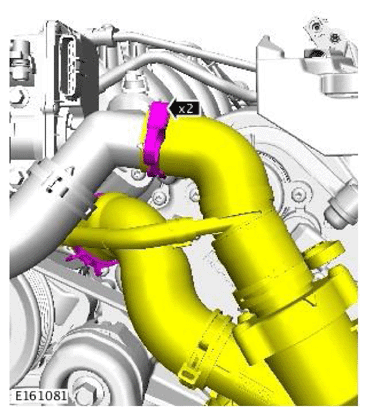

  4. G11762669

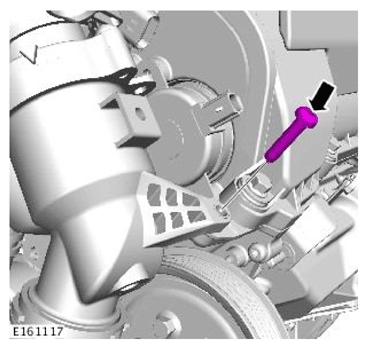

  5. G11762670

    Torque Specification: 10 Nm

  6. G11709238
  7. G11709476

    Torque Specification: 48 Nm

  8. Refer to: ACCESSORY DRIVE BELT - V8 N/A 5.0L PETROL .
  9. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING  .
