Parking Brake And Actuation
>>
Parking Brake (Description And Operation)
>>
Description And Operation
>>
Description
>>

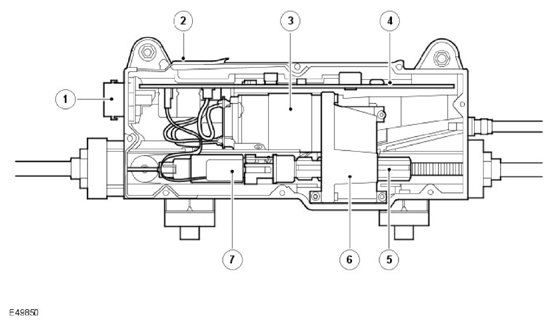

Interior Of Electric Park Brake Control Module (EPBCM)
Interior Of Electric Park Brake Control Module (EPBCM)
ITEM
DESCRIPTION
1
Electrical connector
2
Housing
3
Electric motor
4
PCB (Printed Circuit Board)
5
Spline shaft
6
Gearbox
7
Force sensor
