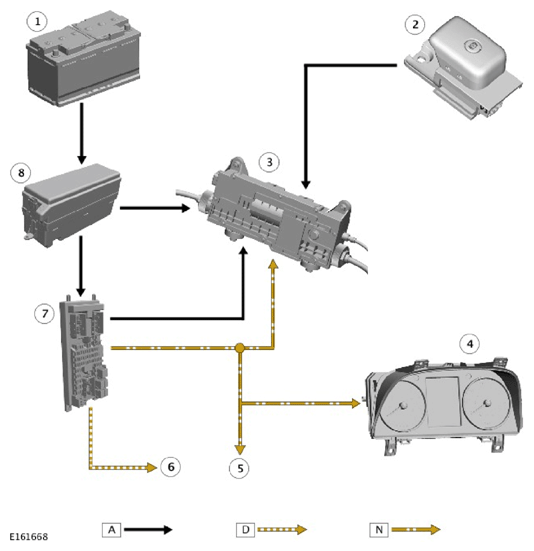

Control Diagram
NOTE:
A
= Hardwired; D
= High speed (HS) Controller Area Network (CAN) bus; N
= Medium speed (MS) CAN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Electric Park Brake (EPB) switch |
| 3 | Electric Park Brake Control Module (EPBCM) |
| 4 | Instrument cluster (IC) |
| 5 | Medium speed (MS) Controller Area Network (CAN) bus connection to other systems |
| 6 | High speed (HS) Controller Area Network (CAN) bus connection to other systems |
| 7 | Central Junction Box (CJB) |
| 8 | Engine Junction Box (EJB) |
