Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Engine Undershield .
  3. Refer to: Engine Oil Draining and Filling .

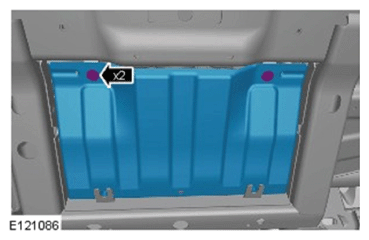

  4. G11597350
  5. NOTE:
    • Discard the seal.
    • Some variation in the illustrations may occur, but the essential information is always correct.
    G11597351

    Torque Specification: 12 Nm
