Removal And Installation: Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

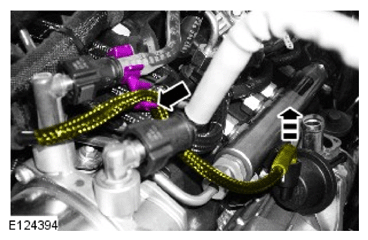

  1. G11597340

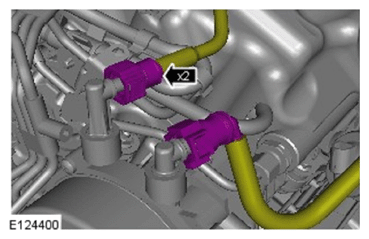

  2. G11597341

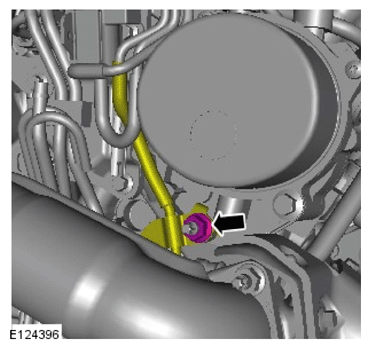

  3. G11597342

    Torque Specification: 23 Nm

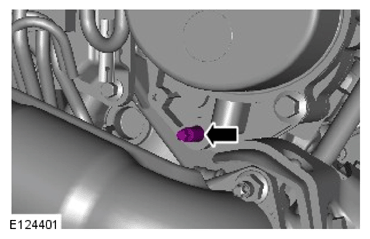

  4. G11597343

    Torque Specification: 13 Nm

  5. NOTE: Discard the O-ring seal.

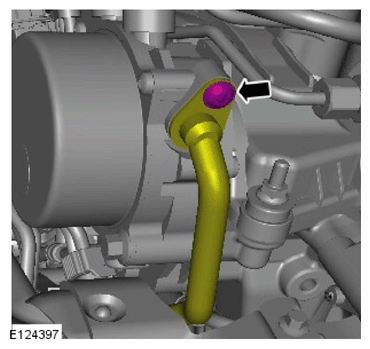

    G11597344

    Torque Specification: 10 Nm

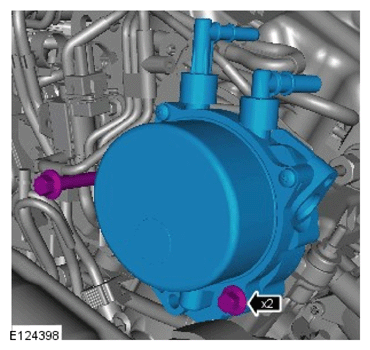

  6. G11597345

    Torque Specification: 23 Nm

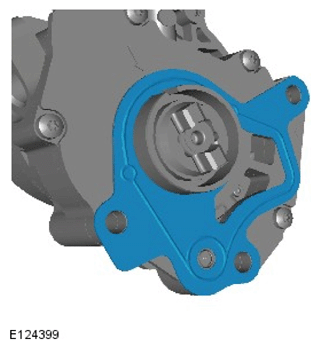

  7. G11597346
