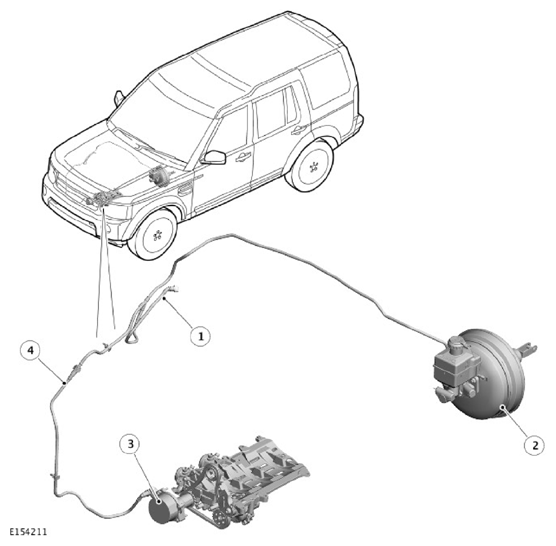

Component Locations - 5.0L NA

NOTE: LHD shown, RHD similar

G11597320

ITEM	DESCRIPTION
1	Vacuum pipe connection to intake manifold
2	Brake Booster
3	Vacuum pump
4	Vacuum pipes
