Left Catalytic Converter (G1189536): Removal

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
WARNING:
- Make sure to support the vehicle with axle stands.
- Observe due care when working near a hot exhaust system.
Raise and support the vehicle.
Refer to: Air Deflector (Front End Body Panels, Removal and Installation).
Refer to: Engine Rear Undershield (Front End Body Panels, Removal and Installation).

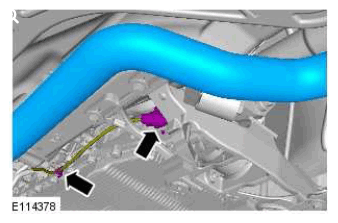

CAUTION: Make sure the catalyst monitor sensor wiring harness is not twisted more than 180 degrees and is not in contact with either the exhaust or driveshaft.

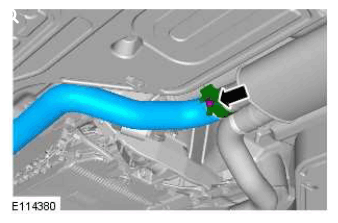

CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
- Tighten the top retaining nut first.
- Torque Specification:
  Top nut 40 Nm

  Bottom nut 40 Nm

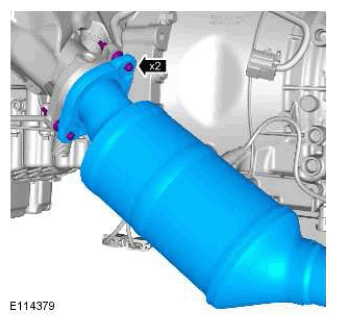

CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

Torque Specification: 55 Nm

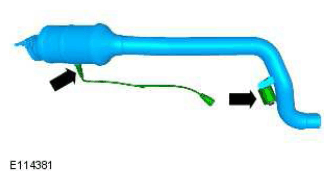

CAUTION:
- Make sure the anti-seize compound does not contact the catalyst monitor sensor tip.
- If accidentally dropped or knocked install a new sensor.
NOTE:
- Do not disassemble further if the component is removed for access only.
- If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.
Torque Specification: 48 Nm
