Exhaust System (G1086743): Removal

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. WARNING:
    • Make sure to support the vehicle with axle stands.
    • Observe due care when working near a hot exhaust system.

    Raise and support the vehicle.

  3. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).
  4. Refer to: Engine Rear Undershield (Front End Body Panels, Removal and Installation).

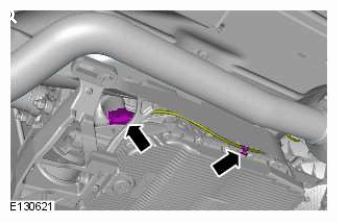

  5. G11423881

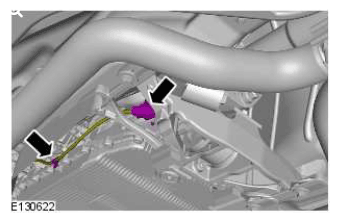

  6. G11423882
  7. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

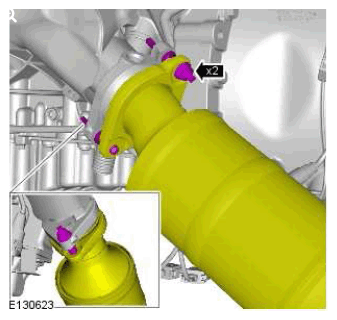

    G11423883

    Torque Specification: 40 Nm

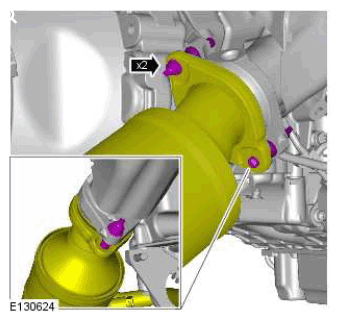

  8. G11423884

    Torque Specification: 40 Nm

  9. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

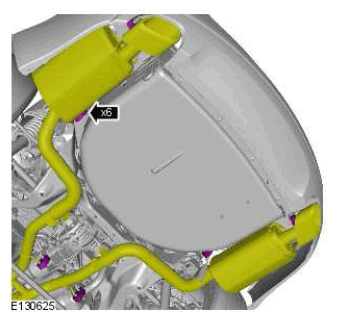

    G11423885
  10. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

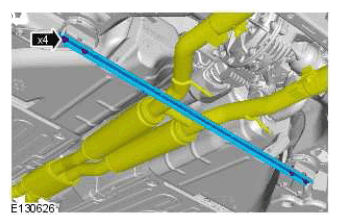

    G11423886

    Torque Specification: 30 Nm

  11. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

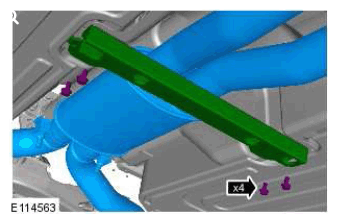

    G11423887

    Torque Specification: 6 Nm

  12. NOTE: Do not disassemble further if the component is removed for access only.

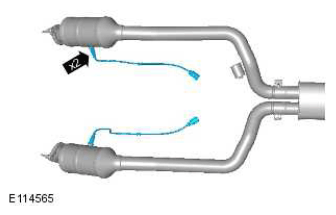

    G11423888

    Torque Specification: 48 Nm
