Control Diagram

WARNING: This page is about a different car, the 2018 Jaguar XF, 2017 Jaguar XF, and 2016 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

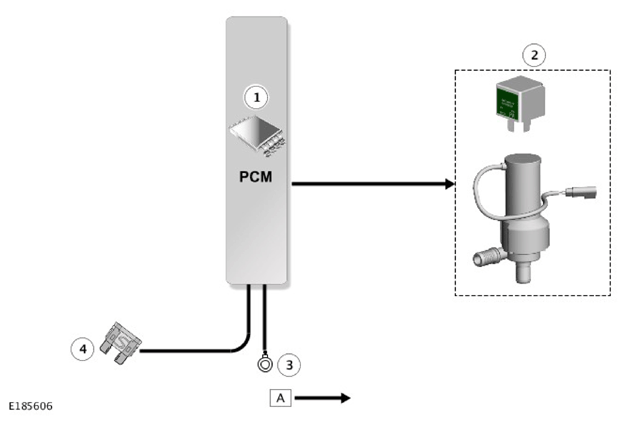

G11326761

A = HARDWIRED

ITEM DESCRIPTION
1 Powertrain Control Module (PCM)
2 Air charge coolant pump
3 Ground
4 Power supply
