Removal And Installation: Installation

CAUTION: Lubricate only the union threads with clean engine oil.

NOTE: Engine shown removed for clarity.

Renew Part: Fuel rail LH supply pipe Quantity: 1 .

Renew Part: Fuel rail RH supply pipe Quantity: 1 .

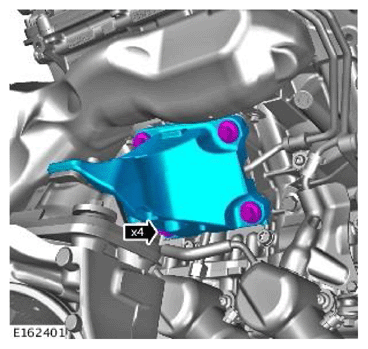

Torque Specifications:

Stage 1: 45 Nm

Stage 2: 60°
Remove the special tool.

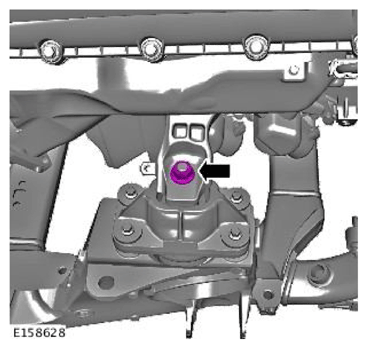

Torque Specification: 130 Nm
Torque Specification: 10 Nm
NOTE: Some components shown removed for clarity.

Fig 1: Fuel Rail Supply Pipe Bracket Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specifications:

Unions (1) 21 Nm

M6 (2) 11 Nm

M8 (3) 25 Nm
Lower the vehicle.
Install new fuel injector O-ring seals.

Renew Part: Fuel injector O-ring seals Quantity: 1 .
Install new Teflon seals on the lower tips of the injectors.

Special Tool(s): 310-198

Renew Part: Fuel injector lower seals Quantity: 1 .
Special Tool(s): 310-199
Install a new fuel injector clamp.

Renew Part: Fuel Injector replacement kits Quantity: 1 .
CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.

NOTE: LH illustration shown, RH is similar.

Special Tool(s): 310-200-01
CAUTION: Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector.

NOTE: LH illustration shown, RH is similar.
NOTE: This step is only required if a new fuel rail is installed.

Refer to: FUEL RAIL PRESSURE SENSOR
CAUTION: If new fuel injectors are installed, a new injector clamp must be installed.

NOTE: Lubricate the fuel injector O-ring seals with clean engine oil.

Torque Specification: 20 Nm
NOTE: LH illustration shown, RH is similar.

Special Tool(s): 310-200-01
NOTE: LH illustration shown, RH is similar.

Torque Specification: 20 Nm
NOTE: LH illustration shown, RH is similar.

Special Tool(s): 310-200-01
NOTE: LH illustration shown, RH is similar.

Torque Specification: 20 Nm
NOTE: Tighten the bolts in the indicated sequence.

Fig 2: Right Fuel Rail Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specifications:

Bolt 2 30 Nm

Bolt 3 30 Nm

Bolt 1 30 Nm
NOTE: LH illustration shown, RH is similar.

Torque Specification: 8 Nm
NOTE: LH illustration shown, RH is similar.
NOTE: Remove and discard the blanking caps.

Torque Specifications:

Unions 21 Nm

Nut 6 Nm
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
NOTE: Some components shown removed for clarity.

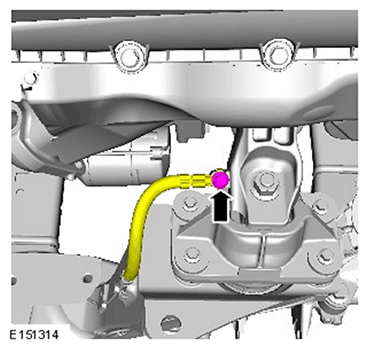

Torque Specification: 21 Nm
Torque Specifications:

M6 12 Nm

M10 29 Nm
Torque Specification: 25 Nm
Refer to: GENERATOR (REMOVAL AND INSTALLATION)
Lower the vehicle.
CAUTION: Lubricate only the union threads with clean engine oil.

NOTE: Install the bolts and unions finger tight before final tightening.
Torque Specifications:

Unions 21 Nm

Bolts 12 Nm
Torque Specification: 21 Nm
Refer to: RIGHT AIR CLEANER
Torque Specification: 3.5 Nm
Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR
Connect the battery ground cable.
Refer to: SPECIFICATIONS
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL/V8 N/A 5.0L PETROL/V8 S/C 5.0L PETROL
