Removal And Installation: Installation

Special Tool(s): 310-198
Special Tool(s): 310-199
CAUTION: If the original fuel injector is being installed, the original fuel injector clamp must installed with the fuel injector it was removed with.
CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.

Special Tool(s): 310-200-01
CAUTION: Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector.
CAUTION: If new fuel injectors are installed, a new injector clamp must be installed.

NOTE: Lubricate the fuel injector O-ring seals with clean engine oil.

Torque Specification: 20 Nm
Special Tool(s): 310-200-01
Torque Specification: 20 Nm
Special Tool(s): 310-200-01
Torque Specification: 20 Nm
NOTE: Tighten the bolts in the indicated sequence.

Fig 1: Left Fuel Rail Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specifications:

Bolt 2 30 Nm

Bolt 3 30 Nm

Bolt 1 30 Nm

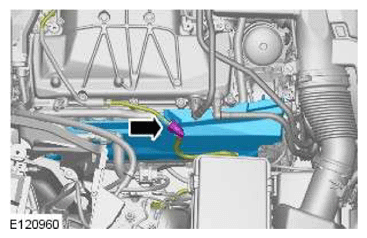

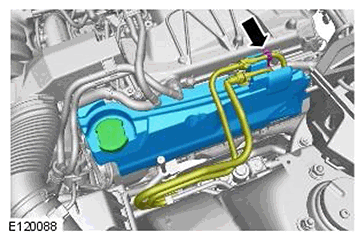

Torque Specification: 7 Nm

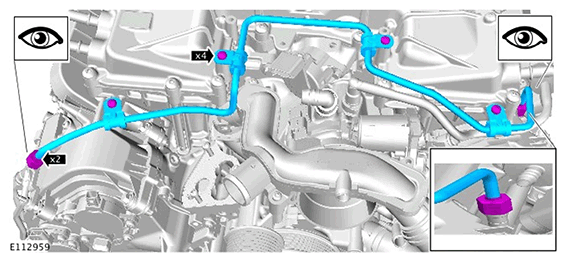

CAUTION: Lubricate only the union threads with clean engine oil.

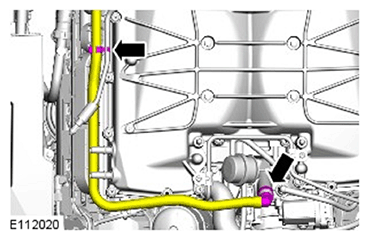

NOTE: Do not tighten at this stage.

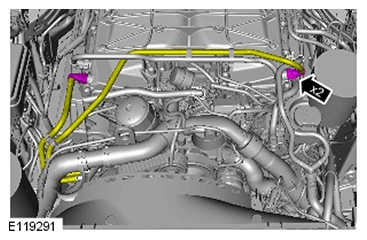

Torque Specifications:

Unions 21 Nm

Bolts 8 Nm

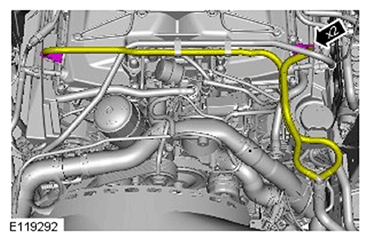

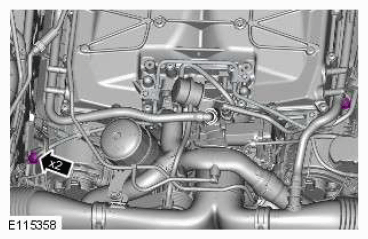

Torque Specification: 21 Nm
Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR
Refer to: SPECIFICATIONS
