Component Location

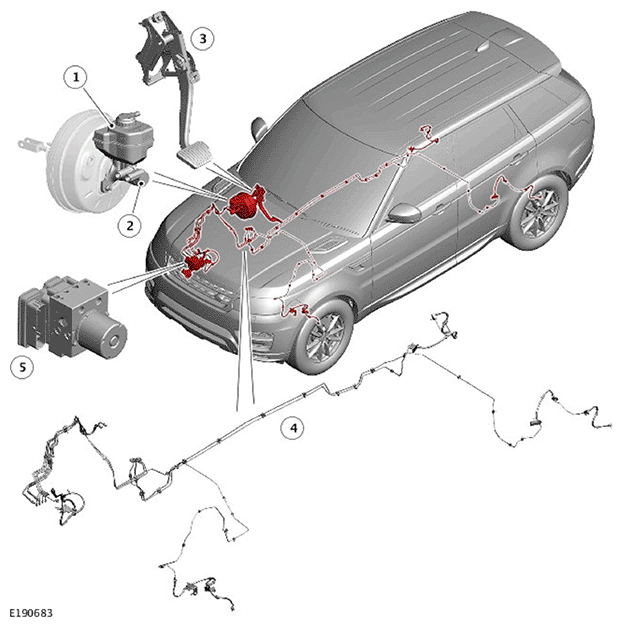

G11693868
ITEM DESCRIPTION
1 Brake fluid reservoir
2 Brake master cylinder
3 Brake pedal
4 Brake pipes and hoses
5 Anti-lock Brake System (ABS) control module
