Removal And Installation: Removal

NOTE: Some variation in the illustration may occur, but the essential information is always correct.
  1. Fully extend the steering column for access.
  2. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS .

  3. Refer to: INSTRUMENT CLUSTER .
  4. CAUTION: To prevent static damage to the circuits, place the instrument cluster inside the electro static discharge bag and use the gloves provided during this procedure.
    G11600887
  5. CAUTION: Using a suitable plastic trim tool, release the clips.

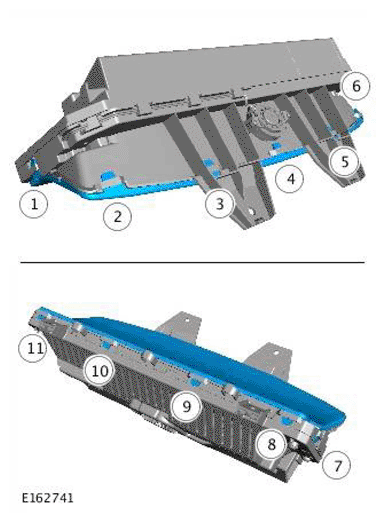

    G11701786

    Starting from one end, carefully release the 11 clips in the order shown.

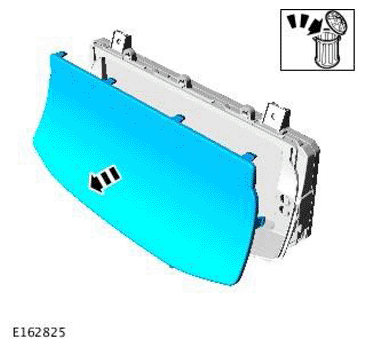

  6. G11701787
