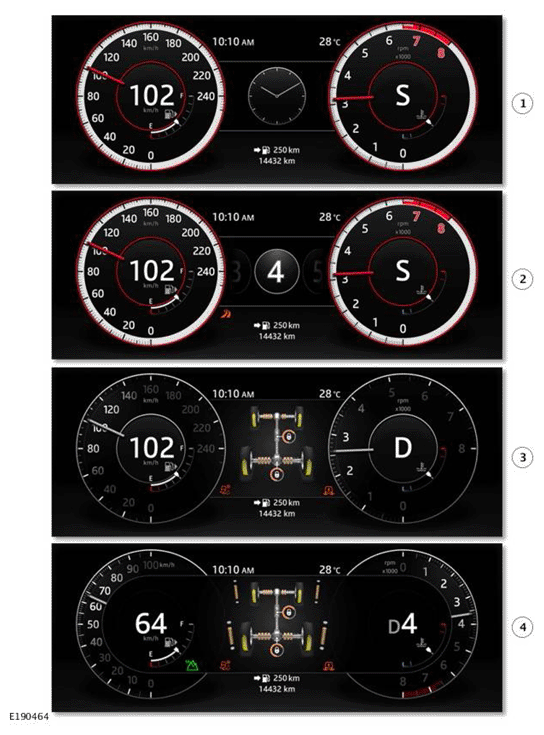

Event Screens
| ITEM | DESCRIPTION |
|---|---|
| 1 | Sport (Tachometer scale recalibrates) |
| 2 | Sport Dynamic (Tachometer scale recalibrates) |
| 3 | Off road |
| 4 | Off road, Low range (Speedometer and Tachometer scales recalibrate) |
A large number of differing permutations of screens are available to cover all possible combinations of the available functions. The illustration shows a few of the options available, but other screens are available to cover a range of vehicle functions.
Certain vehicle functions will overwrite the existing information displayed.
A number of features are also used to convey information to the driver. For example, if speed control is selected, the set speed is displayed as a marker in the speedometer outer ring.
The speedometer is driven by square wave signals derived from the wheel speed sensors and the Anti-lock Brake System (ABS) control module. The signal is received on the High Speed (HS) Controller Area Network (CAN) chassis bus. The fuel gauge is shown in the speedometer gauge.
The tachometer is driven by an engine speed signal transmitted to the Instrument Cluster (IC) on HS CAN Comfort bus (via the Gateway Module) from the Crankshaft Position (CKP) sensor. The engine coolant temperature gauge is shown in the tachometer gauge.
