Instrument Cluster

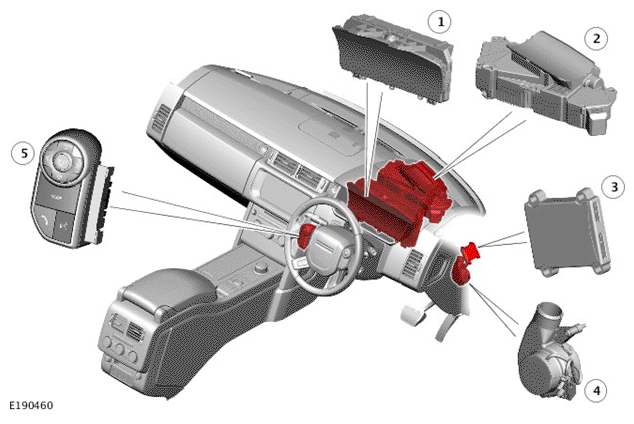

G11764129
ITEM DESCRIPTION
1 Instrument Cluster (IC)
2 Head Up Display (HUD)
3 Head Up Display Cooling Fan Control Module (HUDCFCM)
4 Head Up Display cooling fan
5 Steering wheel switchpack - left
