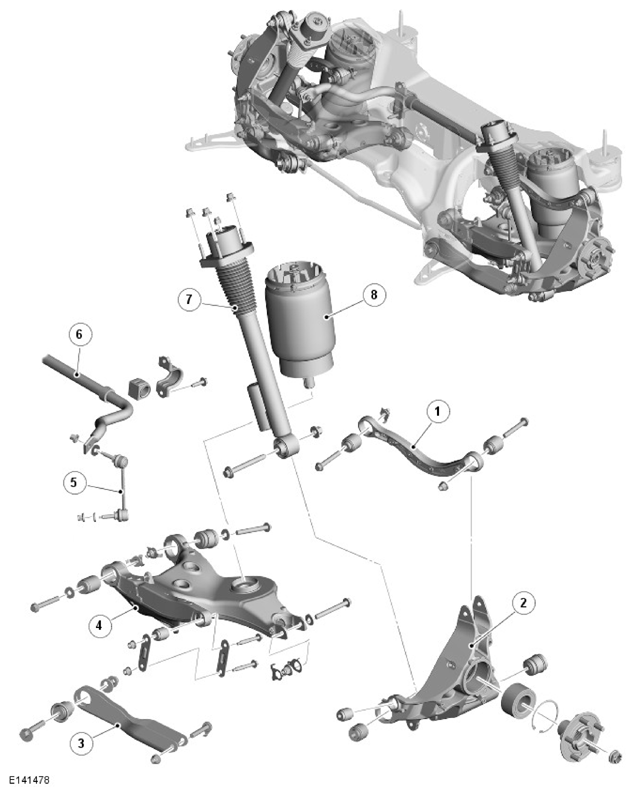

Rear Suspension Component Layout

G11745134

ITEM	DESCRIPTION
1	Upper arm
2	Wheel knuckle
3	Tie arm
4	Lower arm
5	Stabilizer link
6	Stabilizer bar
7	Damper
8	Air spring
