Charge Air Radiators
WARNING: This page is about a different variant/trim than selected.

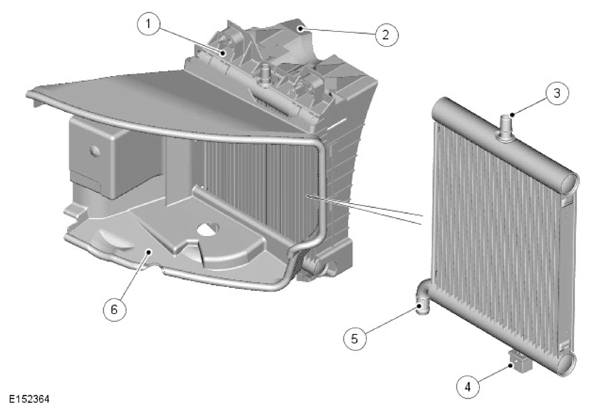

| ITEM | DESCRIPTION |
|---|---|
| 1 | Radiator Support Bracket |
| 2 | Rear Air Duct |
| 3 | Coolant Hose Connection - Outlet on Left Radiator, Inlet on Right Radiator |
| 4 | Isolator |
| 5 | Coolant Hose Connection - Inlet on Left Radiator, Outlet on Right Radiator |
| 6 | Front Air Duct |
A charge air radiator is located each side of the cooling pack, behind the outer air intakes in the front bumper. The charge air radiators are installed in air ducts attached to the front bumper armature and the front end carrier. The lower end tank of each charge air radiator is located in the air ducts by a spigot fitted with an isolator bush. The upper end tank of each charge air radiator is held in a support bracket in the air duct.
Hoses connect the two charge air radiators in series, the intake of the right radiator to the charge air coolers, and the outlet of the left radiator to the charge air coolant pump.
