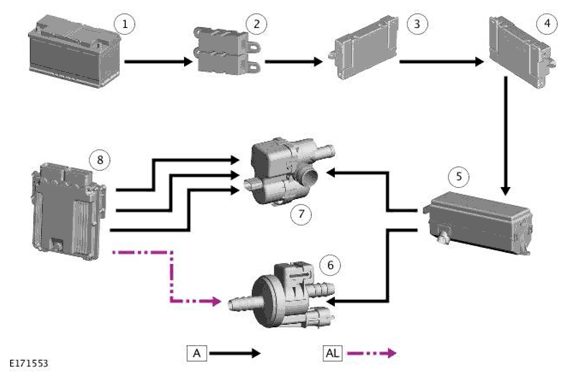

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED; AL = PULSE WIDTH MODULATION (PWM).
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box 2 (BJB2) |
| 3 | Battery Junction Box (BJB) |
| 4 | Auxiliary Junction Box (AJB) |
| 5 | Engine Junction Box (EJB) |
| 6 | Purge valve |
| 7 | Diagnostic Module Tank Leakage (DMTL) pump (NAS only) |
| 8 | Powertrain Control Module (PCM) |
