Component Location
WARNING: This page is about a different variant/trim than selected.

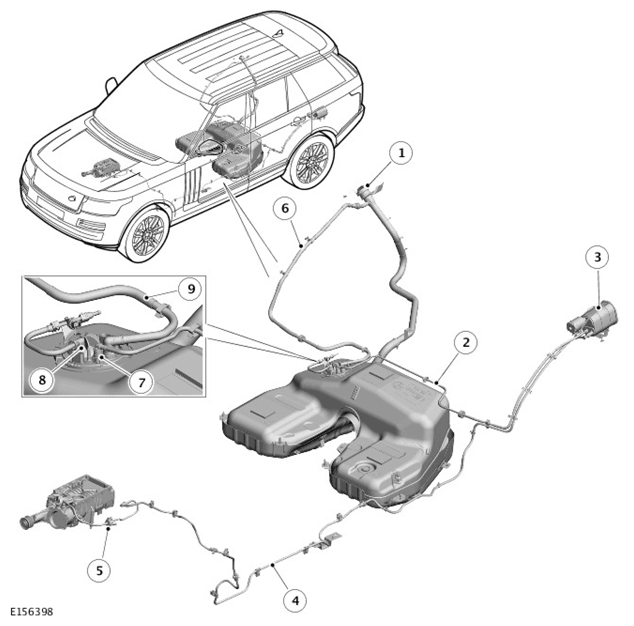

COMPONENT LOCATION - 1 OF 2 - ALL MARKETS, EXCEPT NAS
NOTE:
Installation on naturally aspirated petrol engine shown, Installation on supercharged petrol engine similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel filler cap and pipe |
| 2 | Fuel tank vent pipe to evaporative emissions canister |
| 3 | Evaporative emissions canister |
| 4 | Underfloor purge line - evaporative emissions canister to purge valve |
| 5 | Purge valve with pipes |
| 6 | Refueling breather from fuel tank stub to upper filler pipe connection |
| 7 | Ventilation pipe from tank flange to evaporative emissions canister |
| 8 | Fuel pump module |
| 9 | Refueling breather from fuel tank stub to upper filler pipe connection |

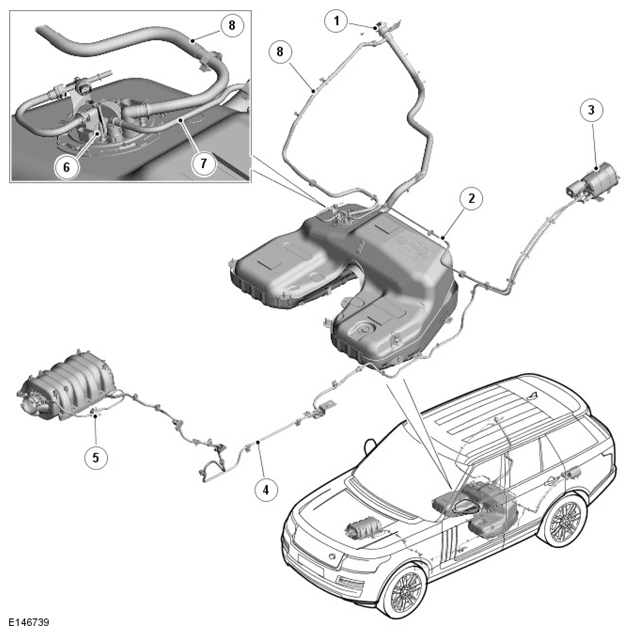

COMPONENT LOCATION - 2 OF 2 - NAS MARKET VEHICLES ONLY
NOTE:
Installation on supercharged petrol engine shown, Installation on naturally aspirated petrol engine similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Communication tube - tank to filler pipe Fuel pump module |
| 2 | Fuel filler cap and pipe |
| 3 | Refueling breather from tank stub to on-board refueling vapor recovery and evaporative emissions canister |
| 4 | Evaporative emissions canister; secondary evaporative emissions canister and Diagnostic Module Tank Leakage (DMTL) pump |
| 5 | Underfloor purge line - evaporative emissions canister to purge valve |
| 6 | Purge valve with pipes |
| 7 | Fuel pump module |
| 8 | Ventilation pipe from tank flange to evaporative emissions canister |
| 9 | Refueling breather from tank stub to on-board refueling vapor recovery and evaporative emissions canister |
| 10 | Communication tube - tank to filler pipe Fuel pump module |
