Part Load Breather
WARNING: This page is about a different variant/trim than selected.

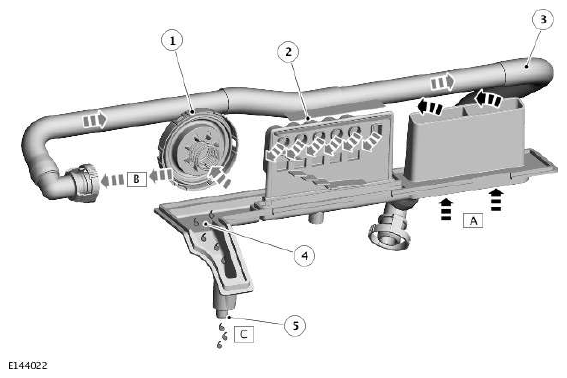

| ITEM | DESCRIPTION |
|---|---|
| A | Dirty Gas Flow |
| B | Clean Gas Flow |
| C | Oil |
| 1 | Positive Crankcase Ventilation (PCV) Valve |
| 2 | Oil Separator |
| 3 | Flexible Hose |
| 4 | Baffle Plate |
| 5 | Oil Drain |
The part load breather consists of an oil separator, PCV valve and a flexible hose. The oil separator and the PCV valve are installed in the top of the right camshaft cover. The flexible hose connects the right camshaft cover to the intake of the supercharger.
The oil separator is installed in a channel in the top of the camshaft cover. A baffle plate, which incorporates a gas intake and an oil drain, is installed over the channel. The PCV valve is integrated into the camshaft cover and connected in parallel in the gas outlet from the channel to the flexible hose. The PCV valve regulate the crankcase pressure.
