Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Remove the front driveshaft.

    Refer to: FRONT DRIVESHAFT - TDV6 3.0L DIESEL

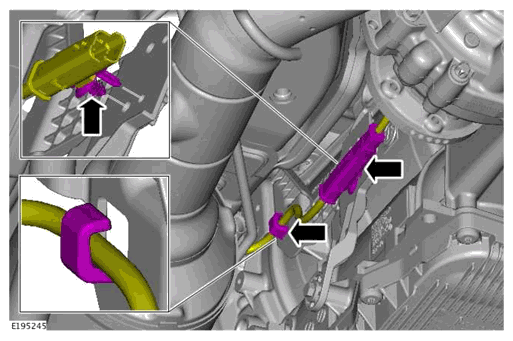

  3. G11772174

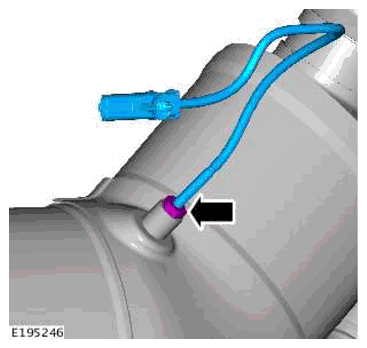

  4. G11772175
