Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. G11699297

    Torque Specifications:

    M10 60 Nm

    M6 10 Nm

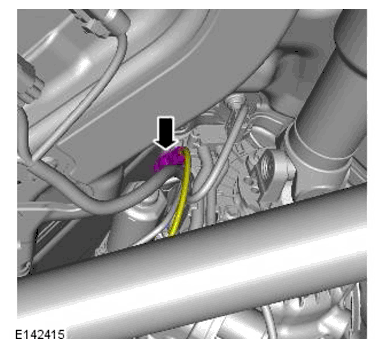

  3. G11699326

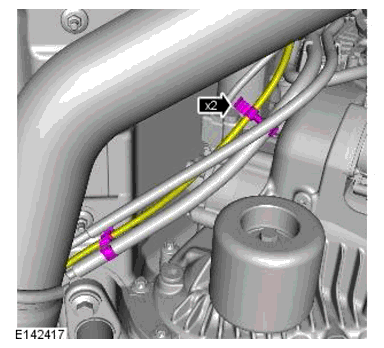

  4. G11699327

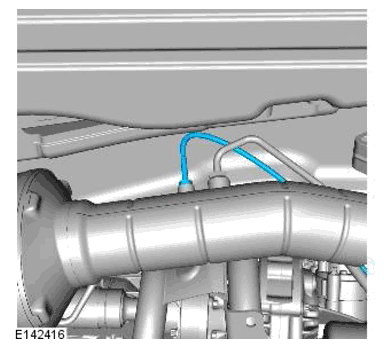

  5. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11699328

    Torque Specification: 35 Nm
