Exhaust Pressure Control Valve - All Markets, Except EU4

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

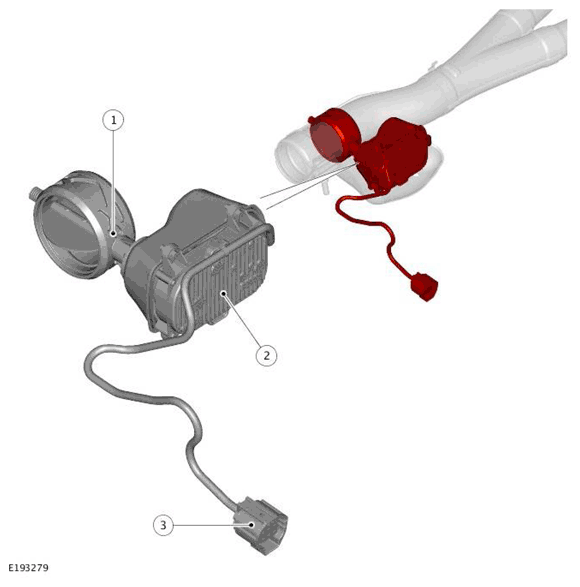

G11699212
ITEM DESCRIPTION
1 Exhaust pressure control valve
2 Exhaust pressure control valve actuator
3 Electrical connection

The exhaust pressure control valve is located in the front of the exhaust system rear section. The assembly comprises a flap valve which is welded to the exhaust pipe and an actuator which is secured to the valve with four screws. The actuator is controlled by the Powertrain Control Module (PCM). The valve controls the quantity of the exhaust gas that is redirected through the Low Pressure (LP) Exhaust Gas Recirculation (EGR) valve.

For additional information, refer to: ENGINE EMISSION CONTROL
