Component Location - 3 Of 8
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

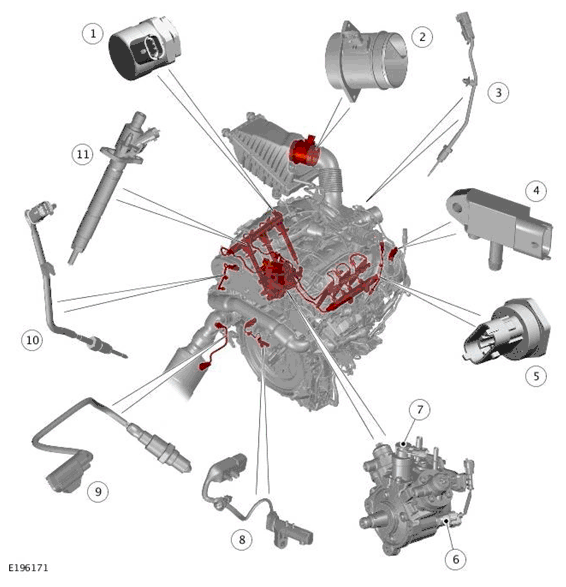

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel pressure control valve |
| 2 | Mass Air Flow and Temperature (MAFT) sensor |
| 3 | Exhaust Gas Recirculation (EGR) outlet temperature sensor - North American Specification (NAS) market vehicles only |
| 4 | Crankcase pressure sensor - North American Specification (NAS) market vehicles only |
| 5 | Fuel Rail Pressure (FRP) sensor |
| 6 | Fuel temperature sensor |
| 7 | Fuel metering valve |
| 8 | Crankshaft Position (CKP) sensor |
| 9 | Heated Oxygen Sensor (HO2S) |
| 10 | Exhaust gas temperature sensor |
| 11 | Fuel injector - 6 off |
