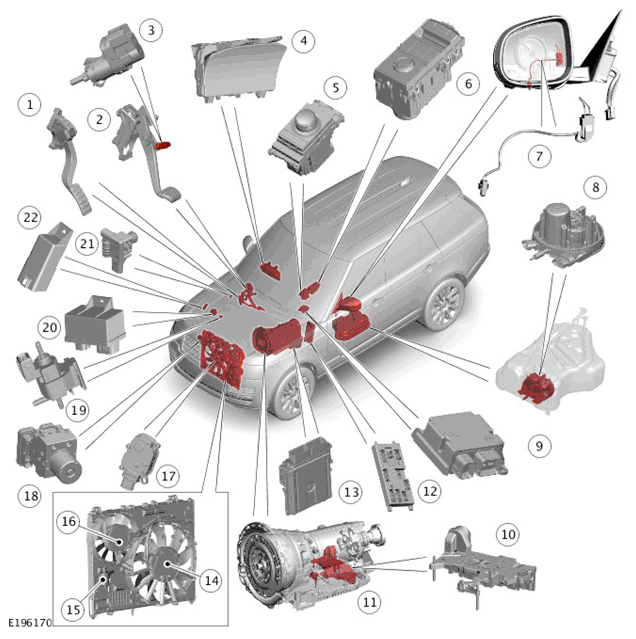

Component Location - 1 Of 8
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Accelerator pedal |
| 2 | Brake pedal |
| 3 | Brake pedal switch |
| 4 | Instrument Cluster (IC) |
| 5 | Transmission Control Switch (TCS) |
| 6 | Terrain Response (TR) switchpack |
| 7 | Ambient Air Temperature (AAT) sensor |
| 8 | Diesel Exhaust Fluid (DEF) tank module |
| 9 | Restraints Control Module (RCM) |
| 10 | Transmission Control Module (TCM) |
| 11 | Transmission - automatic |
| 12 | Body Control Module/Gateway Module Assembly (BCM/GWM) assembly |
| 13 | Powertrain Control Module (PCM) |
| 14 | Engine cooling fan control module - main |
| 15 | Charge air coolant pump |
| 16 | Engine cooling fan control module - auxiliary |
| 17 | Active grille air shutter motor |
| 18 | Anti-lock Brake System (ABS) control module |
| 19 | Active engine mount solenoid |
| 20 | Glow plug control module |
| 21 | Brake vacuum sensor |
| 22 | Diesel Exhaust Fluid (DEF) heater control unit |
