Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    NOTE: Only turn the engine in the normal direction of rotation.

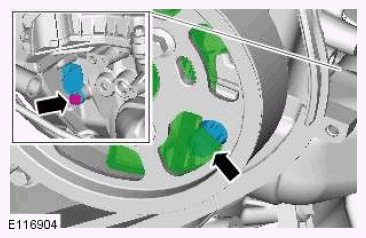

    G11608473

    Turn the engine until one of the three webs on the back of the camshaft pulley is visible through the CMP sensor housing.

  2. To install, reverse the removal procedure.
