Crankshaft Rear Oil Seal
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

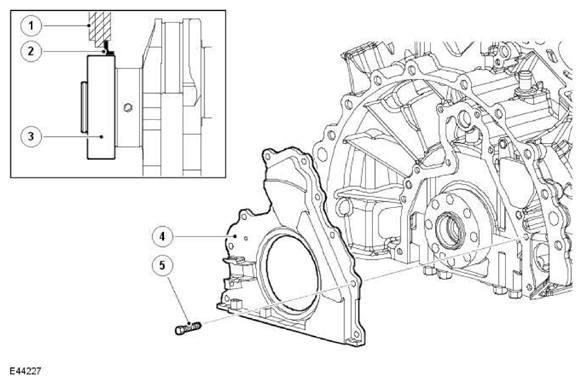

| ITEM | DESCRIPTION |
|---|---|
| 1 | Housing |
| 2 | Seal |
| 3 | Crankshaft |
| 4 | Rear oil seal retainer |
| 5 | Bolt (10 off) |
The rear main oil seal and retainer assembly is a one-piece unit and is supplied with its own fitting sleeve. The seal and retainer have 2 locating dowels, 10 fixing bolts and a seal. In addition, the retainer has a location for the Crankshaft Position Sensor (CKP). For additional information, refer to: ELECTRONIC ENGINE CONTROLS
