Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: TIMING BELT
  3. G11601805
    • Remove the special tool.
    • Special Tool(s): 303-1117
  4. G11601916
    • Install the special tool.
    • Special Tool(s): 303-1123
  5. G11695508

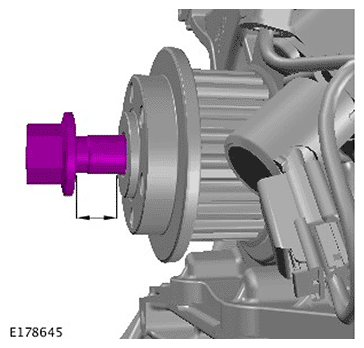

  6. G11695509

    Loosen, but do not fully remove the bolt.

  7. G11695510
    • Install the special tool.
    • Special Tool(s): 303-D121
  8. CAUTION: Discard the bolt.
    G11695511
