Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  3. Remove the timing belt.

    Refer to: TIMING BELT

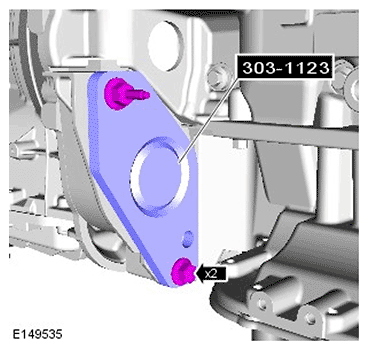

  4. G11695485

    Install the special tool.

    Special Tool(s): 303-1123

  5. Remove the crankshaft pulley.

    Refer to: CRANKSHAFT PULLEY - TDV6 3.0L DIESEL - GEN 2

  6. G11695486

    Install the special tool to the crankshaft.

    Special Tool(s): 303-1120

  7. G11695487

    Install the special tool to the crankshaft, rotate the special tool to engage the crankshaft front oil seal as shown.

    Special Tool(s): 303-1120

  8. G11695488

    Rotate the special tool release bolt.

    Special Tool(s): 303-1120

  9. G11695489

    Using the special tool, remove and discard the crankshaft front oil seal.

    Special Tool(s): 303-1120
