Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

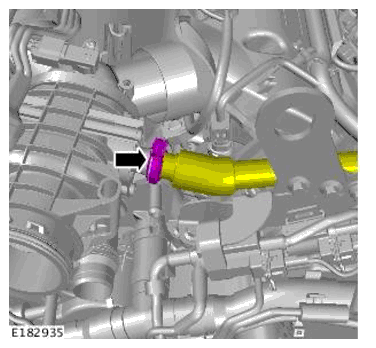

  1. CAUTION: Install a new clamp. Close the clamp to the first audible click by hand. Making sure that the clamp is in a central position to the joint, close to the second audible click using a suitable tool.
    G11698419

    Renew Part: Retaining clip  Quantity: 1  .

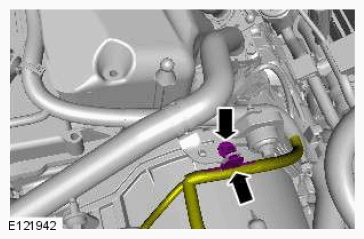

  2. G11608276

    Torque Specification: 5 Nm

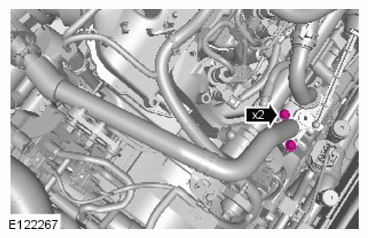

  3. G11771429

    Torque Specification: 10 Nm

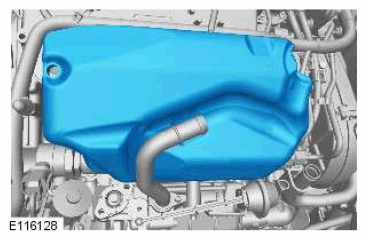

  4. G11601390
  5. Refer to: ENGINE COVER - TDV6 3.0L DIESEL .
