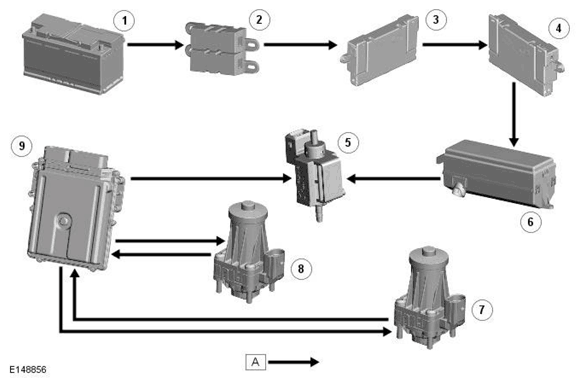

Control Diagram
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED.
| ITEM |
DESCRIPTION |
| 1 |
Battery |
| 2 |
Battery Junction Box (BJB)2 |
| 3 |
Battery Junction Box (BJB) |
| 4 |
Auxiliary Junction Box (AJB) |
| 5 |
EGR cooler bypass valve solenoid |
| 6 |
Engine Junction Box (EJB) |
| 7 |
Left EGR valve motor |
| 8 |
Right EGR valve motor |
| 9 |
Engine Control Module (ECM) |
