Component Location - Exhaust Gas RECIRCULATION

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

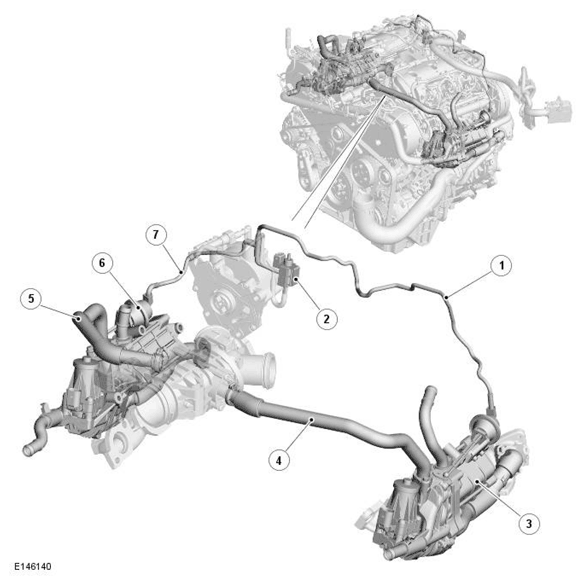

G11698356
ITEM DESCRIPTION
1 Left vacuum tube
2 EGR cooler bypass valve solenoid
3 Left EGR cooler and valve housing
4 Left EGR outlet tube
5 Right EGR outlet tube
6 Right EGR cooler and valve housing
7 Right vacuum tube
