Component Location - Crankcase Ventilation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

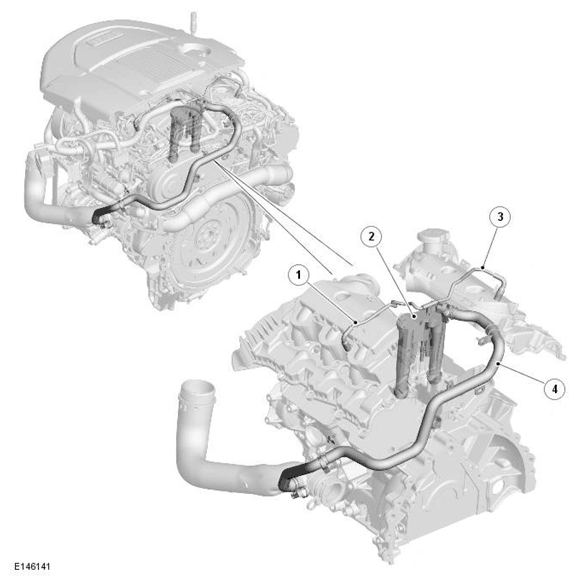

G11698358
ITEM DESCRIPTION
1 Left camshaft cover ventilation tube
2 Oil separator
3 Right camshaft cover ventilation tube
4 Crankcase ventilation hose and tube assembly
