General Procedures: Draining

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Extreme cleanliness must be exercised when handling these components.

NOTE: Make sure to add 1 liter of fluid to the upper tank and drain it through the clear hose, if the Diesel Exhaust Fluid (DEF) dispensing kit is being used for the first time.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the diesel exhaust fluid filler cap.

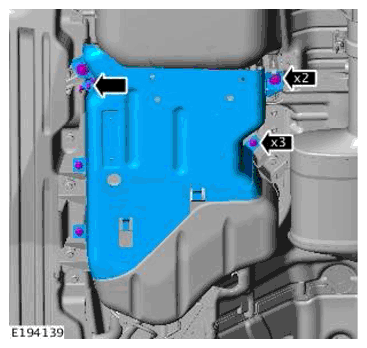

Remove the 5 bolts and the retaining clip.

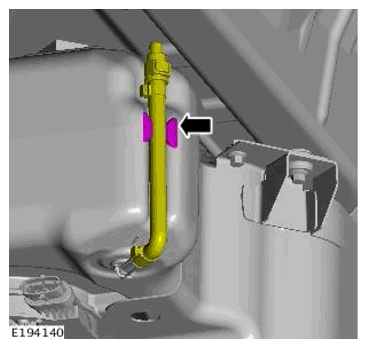

Remove the drain tube from the retaining clip.
WARNING: Be prepared to catch escaping fluid.
- Allow the fluid to drain.
- Install the blanking cap.
Install the drain tube into the retaining clip.
Install the 5 bolts and retaining clip.

Torque Specification: 26 Nm
