Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: INTAKE AIR SHUTOFF THROTTLE
  2. Refer to: CRANKCASE VENT OIL SEPARATOR
  3. Refer to: OIL FILTER ELEMENT

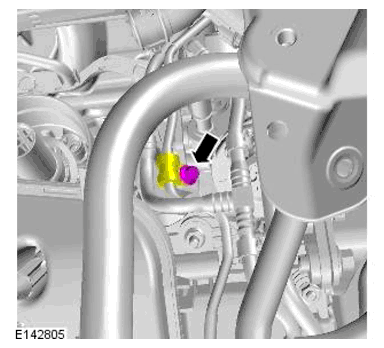

  4. G11698322

    Torque Specification: 10 Nm

  5. G11698323

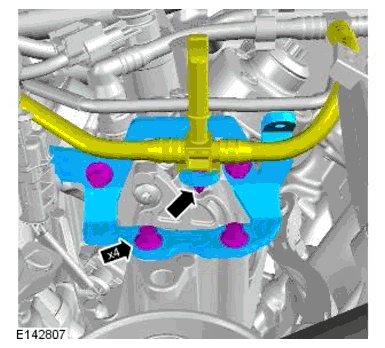

  6. G11698324

    Torque Specification: 10 Nm

  7. CAUTION: Take extra care not to damage the component.

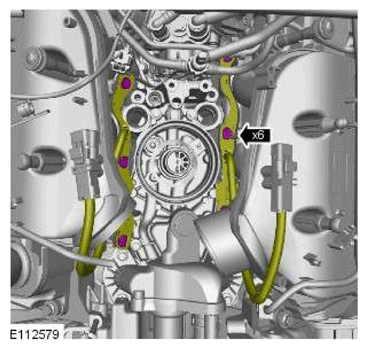

    G11601675
  8. CAUTION: Take extra care not to damage the component.

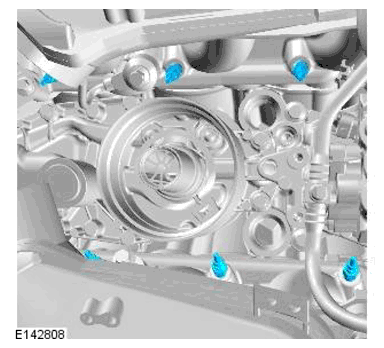

    G11698326

    Torque Specification: 10 Nm
