Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: SPECIFICATIONS
  2. Refer to: SECONDARY BULKHEAD CENTER PANEL - TDV6 3.0L DIESEL
  3. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
  4. Refer to: LEFT EXHAUST GAS RECIRCULATION VALVE OUTLET TUBE
  5. Refer to: FUEL INJECTION COMPONENT CLEANING
  6. G11695951
  7. G11694196

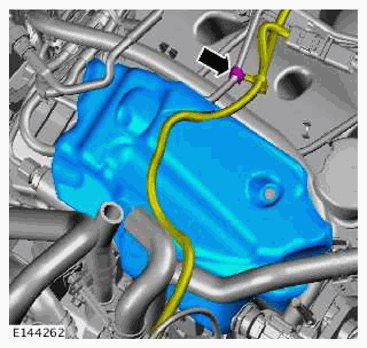

  8. G11769794
  9. G11601496
  10. G11709983
  11. CAUTION: Be prepared to collect escaping fuel.
    G11709984

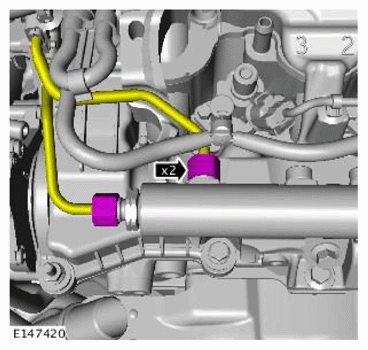

  12. CAUTION: Be prepared to collect escaping fuel.
    G11710126
  13. CAUTION: Be prepared to collect escaping fuel.
    G11601501

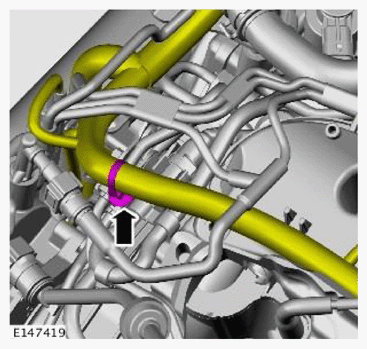

  14. G11710128

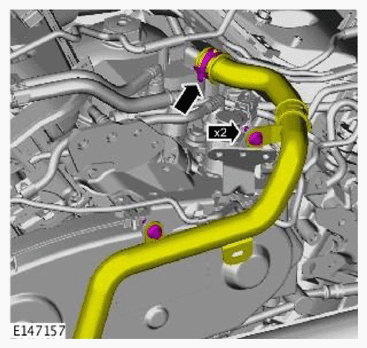

  15. G11710129

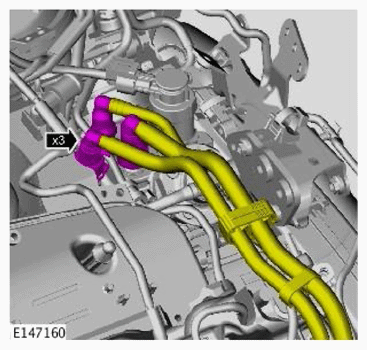

  16. G11710084

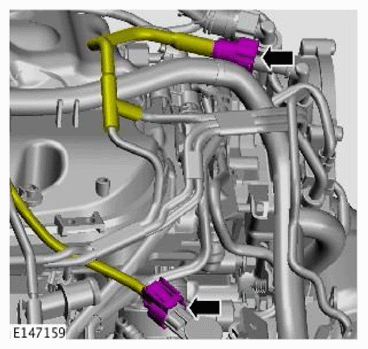

  17. G11710085

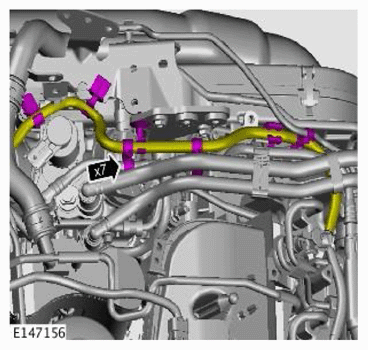

  18. CAUTION: Be prepared to collect escaping fuel.
    G11710086

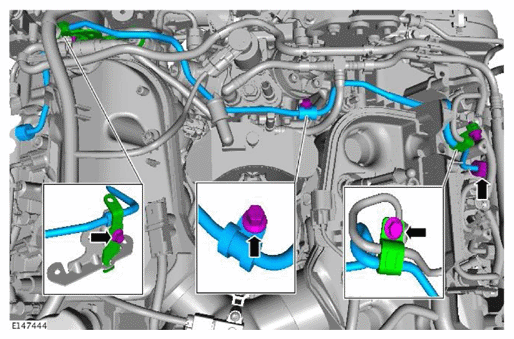

  19. CAUTION: Be prepared to collect escaping fuel.
    G11710133

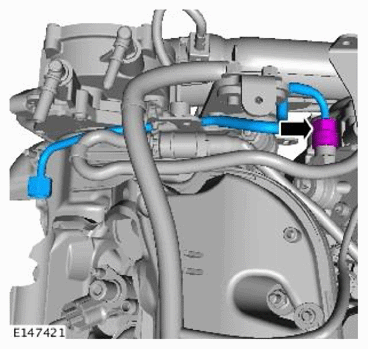

  20. CAUTION: Be prepared to collect escaping fuel.
    G11710134
