Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Diesel fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install new blanking plugs to any open orifices or lines. Failure to follow this instruction may result in foreign matter ingress to the fuel injection system.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: FUEL INJECTION COMPONENT CLEANING
Refer to: SPECIFICATIONS
Refer to: SECONDARY BULKHEAD CENTER PANEL - TDV6 3.0L DIESEL
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
CAUTION: Be prepared to collect escaping coolant.
CAUTION: LH illustration shown, RH is similar.

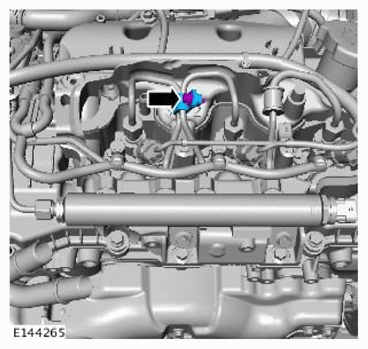

CAUTION: Be prepared to collect escaping fuel.

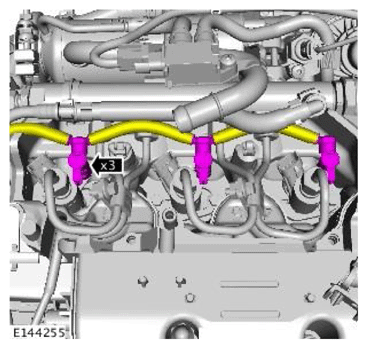

NOTE: Make sure that the fuel injector return line has a maximum of 8 uses.
CAUTION: Be prepared to collect escaping fuel.

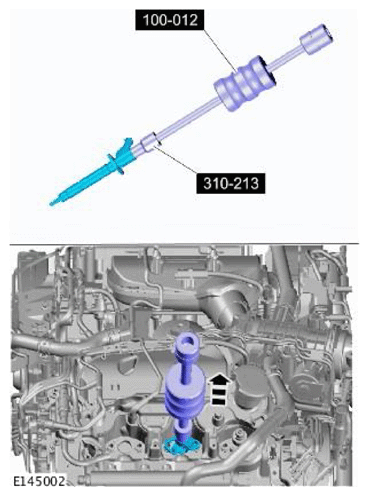

- Install the special tools
  Special Tool(s): 310-213 , 100-012 , JLR-310-237
NOTE: Repeat this step for the remaining fuel injectors.
- Special Tool(s): 310-213 , 100-012
NOTE: This step is only required if new components are not installed.
NOTE: This step is only required if new components are not installed.
